Operation Rolling
Door leaf Aluminium
Features High speed
Integral access door
Vision panels
Specialist environments Aircraft hangers
High wind conditions
Dimensions (h x w) See price list
U-value (W/m2K) See price list
Sound reduction (dB) See price list

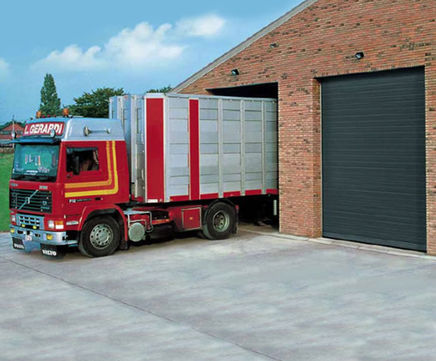

Industrial roller shutters and rolling grilles are available in a wide range of designs for applications ranging from logistics doors to large structural openings up to 30m wide. They are available in steel and aluminium, with manual or operated opening. Hörmann industrial roller shutters and grilles are designed to be robust and resilient against harsh weather conditions.

Decotherm A/S rolling shutter/grilles are available in aluminium and in steel. Optimised profile geometry with special aluminium and steel alloys, combined with the concave interior and exterior surfaces of the Decotherm profiles ensure extremely good roll-up action. The hinges are designed to reduce heat loss and enable a connection between the curtain and barrel, without the usual pressure and wear marks.

All Decotherm profiles are coated with protective paint, which makes them resistant to adverse weather effects. Polyamide particles embedded in the colour coating improve the sliding characteristics of the profiles, effectively reducing abrasion and noise.

HR 116 A, has a particularly strong construction designed for large structural opening. Rolling shutters can also be supplied in sizes up to 11.75m wide and 9m high for especially wide and high hall openings. Hall openings of up to 30m can be covered by combining up to 3 rolling shutters. Hörmann offers standard design options that are commonly only available as special solutions, including swing-aside pass door assembly, also with wicket door, fixed assembly, chamfered bottom profile, side door.

HR 120 aero offers security with extra light and ventilation. It is suitable for use as an alternative for underground garages and arcades. It has a full-frontal, single-skinned shutter construction consisting of concave, perforated profiles (perforation diameter approx. 3.2 mm). The fine perforation keeps out dust, leaves, paper etc. and prevents rubbish from being thrown in.

SSG system offers a solutions for very large structural openings of up to 30m. Up to three rolling shutters or rolling grilles can be coupled in the opening using the SSG system. Once the doors have been opened, the mullions are unlocked manually and slid over to the side park positions. As a result, openings of up to 30m width and 6m height are possible.

WPS increases the rigidity of the door against heavy wind loads. An aluminium telescopic support reliably braces the closed door. On opening, it swings behind the lintel and bolts into the hall floor when the door is closed. As a result, wind load class 2 and higher can be achieved even for larger doors.

Other models in the extensive range include:

HR 120 A/S: a classic profile designed to withstand rough day-to-day operation in unheated buildings.

HR 120 S: a robust steel construction designed for heavy-duty use.

HG-A /-V /-S /-L: rolling grille curtains that offer good ventilation and visibility.

Basic: rolling shutter/rolling grilles designed for use as logistics doors or store entrance doors.

Classic: rolling shutter/rolling grilles use proven technology for optimum door travel.


Industrial roller shutters and rolling grilles are available in a wide range of designs for applications ranging from logistics doors to large structural openings up to 30m wide. They are available in steel and aluminium, with manual or operated opening. Hörmann industrial roller shutters and grilles are designed to be robust and resilient against harsh weather conditions.

Decotherm A/S rolling shutter/grilles are available in aluminium and in steel. Optimised profile geometry with special aluminium and steel alloys, combined with the concave interior and exterior surfaces of the Decotherm profiles ensure extremely good roll-up action. The hinges are designed to reduce heat loss and enable a connection between the curtain and barrel, without the usual pressure and wear marks.

All Decotherm profiles are coated with protective paint, which makes them resistant to adverse weather effects. Polyamide particles embedded in the colour coating improve the sliding characteristics of the profiles, effectively reducing abrasion and noise.

HR 116 A, has a particularly strong construction designed for large structural opening. Rolling shutters can also be supplied in sizes up to 11.75m wide and 9m high for especially wide and high hall openings. Hall openings of up to 30m can be covered by combining up to 3 rolling shutters. Hörmann offers standard design options that are commonly only available as special solutions, including swing-aside pass door assembly, also with wicket door, fixed assembly, chamfered bottom profile, side door.

HR 120 aero offers security with extra light and ventilation. It is suitable for use as an alternative for underground garages and arcades. It has a full-frontal, single-skinned shutter construction consisting of concave, perforated profiles (perforation diameter approx. 3.2 mm). The fine perforation keeps out dust, leaves, paper etc. and prevents rubbish from being thrown in.

SSG system offers a solutions for very large structural openings of up to 30m. Up to three rolling shutters or rolling grilles can be coupled in the opening using the SSG system. Once the doors have been opened, the mullions are unlocked manually and slid over to the side park positions. As a result, openings of up to 30m width and 6m height are possible.

WPS increases the rigidity of the door against heavy wind loads. An aluminium telescopic support reliably braces the closed door. On opening, it swings behind the lintel and bolts into the hall floor when the door is closed. As a result, wind load class 2 and higher can be achieved even for larger doors.

Other models in the extensive range include:

HR 120 A/S: a classic profile designed to withstand rough day-to-day operation in unheated buildings.

HR 120 S: a robust steel construction designed for heavy-duty use.

HG-A /-V /-S /-L: rolling grille curtains that offer good ventilation and visibility.

Basic: rolling shutter/rolling grilles designed for use as logistics doors or store entrance doors.

Classic: rolling shutter/rolling grilles use proven technology for optimum door travel.
