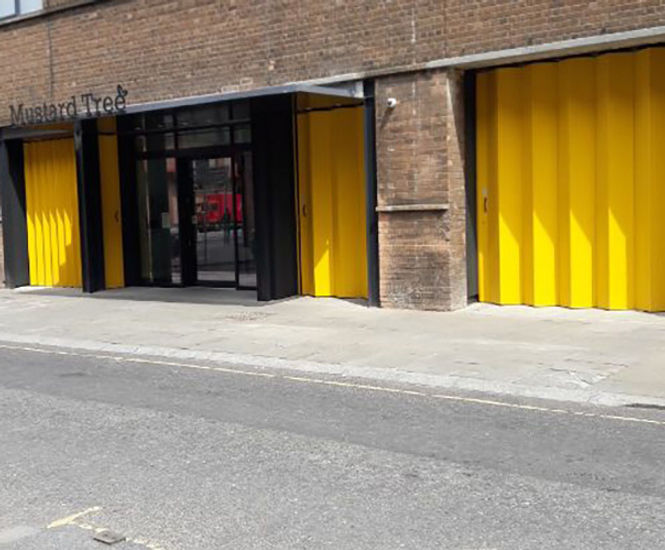

Bolton Eurofold horizontal sliding, folding security shutters are designed for a wide range of external and internal closure applications from small commercial premises to large industrial warehouses.

Key attributes

  • Provide high security with integral strength and durability engineered with economy in mind but without compromise

  • Compact headroom

  • Suitable for a wide range of opening sizes all manufactured on a bespoke basis

  • Wide variety of options and fixing arrangements

  • Low maintenance requirements

Performance characteristics

  • Provides a high level of security

  • Resistance to wind load - Class 5 as standard

Manufacture

Shutter leaves are made from galvanised steel sheet that is 305mm wide x 1.2mm thick. They are formed to create a continuously interlocking, weathertight elevation interconnected by securely capped galvanised hinge strips.

The shutters are strengthened by a high-security leading edge manufactured from galvanised section, which incorporates pull handles. A draft-excluding overlapping section is provided as standard.

The top track that the shutter is suspended from is made from two 90mm-deep galvanised steel sections that are bolted together to give a strong, smooth-running section for the shutter and minimising friction.

Installation

The frame is top-hung from a ball-bearing pulley connected to the picket by zinc-plated pulley brackets. The base is fitted with zinc-plated bottom guide pieces that are retained in a galvanised steel, 3mm-thick bottom track.

Options

  • Single or pair configurations

  • Manual or electric operation

  • Vision panels

  • Safety edges

  • Photocells

  • Polyester powder-coated finish in choice of standard RAL colours
