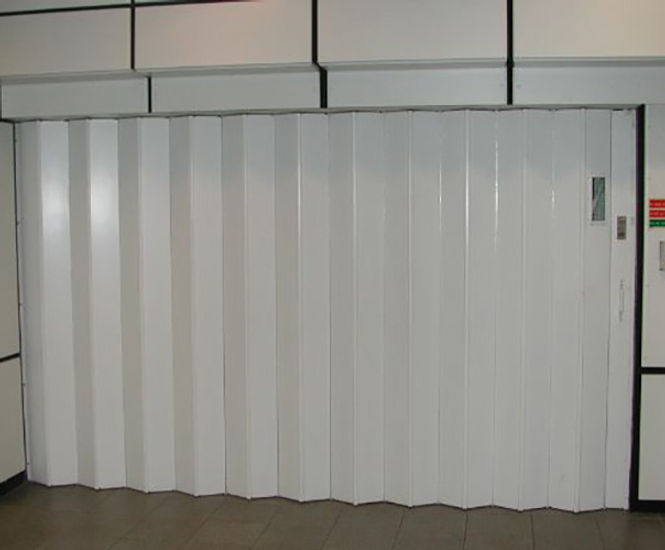

Bolton Gate Company's Superior Folding Lift Shutter Door offers all the advantages of a compact folding door arrangement but with the addition of an extremely robust and heavy-duty design.

All the necessary testing and design considerations have been undertaken to ensure the door satisfies the requirements of EN81 Part 20 and Part 50 when specified.

Key attributes

  • Suitable for goods lift car and landing doors

  • Heavy-duty construction

  • Bespoke, compact design

  • Compliant with relevant EN81 requirements

Performance characteristics

  • EN81 Part 58 (rated El 20 / EW20)

  • EN81 Part 20 compliant

  • EN81 Part 50 compliant

Applications

Traditionally specified for goods lifts in supermarkets, shopping malls, retail stores, warehouses and storage facilities, but other locations around world have benefitted from its integral strength and resilience for example, museums and galleries such as the V & A, London and Munch Museum, Oslo where it is used in the transportation of precious art work, to the extreme opposite of heavy industry, and its use in Jubilee in Botswana, the world's largest diamond.

Weight

Varies with the opening size but approximately 38kg/m2.

Options

  • Vision panel

  • Holdfast magnet

  • Mathews catch

  • Electro-magnet (car doors)

  • VL10 gatelocks (landing doors)

  • Low-level VL10 gatelock release (landing doors)

  • Complete and partial subframe assemblies (landing doors)

  • Heavy-duty cills (landing doors)

  • Stainless steel finish to face side

  • Polyester powder coat finish to a range of standard RAL colours
