Product name TurnSec 4.0
Type Full-height turnstiles
Exteriors / interiors Exterior locations
Functions Access control
Counting
Operation Card reader
Keypad

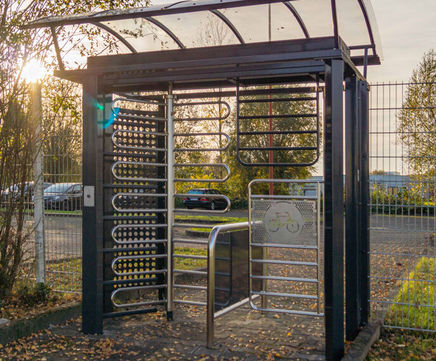

The Avon TurnSec 4.0 turnstile is available as a single and multiple system.

Using high-quality materials, stable steel frame construction and the proven long-term corrosion protection TRI-PROTECT®, Avon's turnstiles offer outstanding durablility and weather-resistance.

  • High-quality finish and attractive design, with a pleasing appearance and standard range of RAL colours.
  • Stable and closed tubular steel construction in modular design, easy to install and low maintenance.
  • Equipped with start memory for high throughput efficiency, stop in end position preventing revving up of the rotor.
  • WE Tronic II control system with contactor board allowing easy access as it is installed in the drive housing.
  • TIME OUT function – locking after elapsed time, adjustable 0–500 sec.
  • Electric motor assisted operation with subsequent safe locking of the rotor in the end position
  • Single-shell roof or Makrolon roof option with or without LED lighting; optionally with twilight switch.
  • Traffic light pictogram – green arrow/red cross.
  • 2 control posts integrated in the turnstile for card reader, intercom units, keypad, etc.
  • Special crawl-through protection.

Specification

  • Frame: robust steel contstruction
  • Rotor: 3 arm – 120°
  • Drive unit: electric motor assisted
  • Control unit: multifunctional, automatic control WE-Tronic II
  • Construction:
    - Hot-dip galvanised bottom frame for installation with 200 mm lowered foundation, thus allowing a visually perfect integration into the design of the walkway area – optional without foundation lowering for installation on finished floor level
    - Rotor made of stainless steel, with welded hairpin-shaped tubular brackets at 120° intervals (3-armed); base frame hot-dip galvanised; guide and deflector elements, upper frame and drive tray powder-coated with long-term corrosion protection
    - Side elements with perforated sheet filling, perforation RV 20-28 or upper and lower rail made of flat steel, filling rods made of round tube; optional personal guide housing made of steel with aluminium door


The Avon TurnSec 4.0 turnstile is available as a single and multiple system.

Using high-quality materials, stable steel frame construction and the proven long-term corrosion protection TRI-PROTECT®, Avon's turnstiles offer outstanding durablility and weather-resistance.

  • High-quality finish and attractive design, with a pleasing appearance and standard range of RAL colours.
  • Stable and closed tubular steel construction in modular design, easy to install and low maintenance.
  • Equipped with start memory for high throughput efficiency, stop in end position preventing revving up of the rotor.
  • WE Tronic II control system with contactor board allowing easy access as it is installed in the drive housing.
  • TIME OUT function – locking after elapsed time, adjustable 0–500 sec.
  • Electric motor assisted operation with subsequent safe locking of the rotor in the end position
  • Single-shell roof or Makrolon roof option with or without LED lighting; optionally with twilight switch.
  • Traffic light pictogram – green arrow/red cross.
  • 2 control posts integrated in the turnstile for card reader, intercom units, keypad, etc.
  • Special crawl-through protection.

Specification

  • Frame: robust steel contstruction
  • Rotor: 3 arm – 120°
  • Drive unit: electric motor assisted
  • Control unit: multifunctional, automatic control WE-Tronic II
  • Construction:
    - Hot-dip galvanised bottom frame for installation with 200 mm lowered foundation, thus allowing a visually perfect integration into the design of the walkway area – optional without foundation lowering for installation on finished floor level
    - Rotor made of stainless steel, with welded hairpin-shaped tubular brackets at 120° intervals (3-armed); base frame hot-dip galvanised; guide and deflector elements, upper frame and drive tray powder-coated with long-term corrosion protection
    - Side elements with perforated sheet filling, perforation RV 20-28 or upper and lower rail made of flat steel, filling rods made of round tube; optional personal guide housing made of steel with aluminium door





Downloads
  • Avon TurnSec 4.0 turnstile - data sheet
    Avon TurnSec 4.0 turnstile - data sheet
    2pp 298.15KB
    Download
  • Avon TurnSec 4.0 turnstile - tender description
    Avon TurnSec 4.0 turnstile - tender description
    2pp 158.85KB
    Download
  • Avon TurnSec 4.0 Bicycle turnstile - data sheet
    Avon TurnSec 4.0 Bicycle turnstile - data sheet
    3pp 286.14KB
    Download
  • Avon TurnSec 4.0 Bicycle turnstile - tender description
    Avon TurnSec 4.0 Bicycle turnstile - tender description
    3pp 151.29KB
    Download
