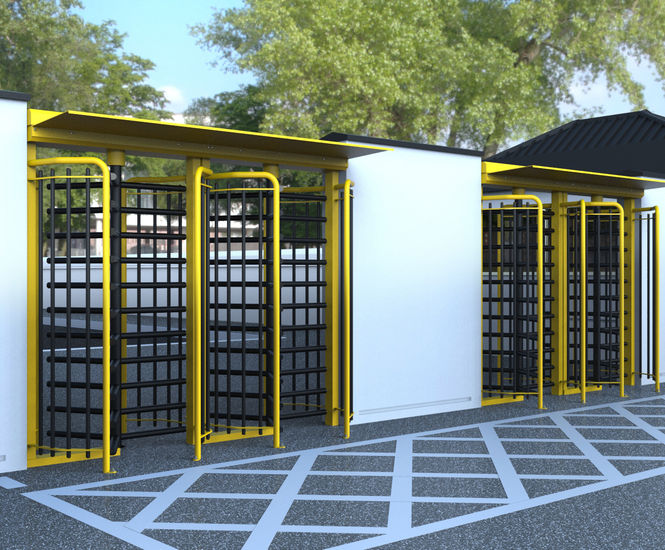

TurnGuard turnstiles are custom-built to requirements to control unguarded pedestrian entrance ways to restricted areas, ensuring only authorised personnel can gain access. Ideal for manufacturing premises, stadiums and leisure venues which require a secure perimeter whilst managing high volumes of people.

TurnGuard turnstiles can be manufactured in either full, three quarter or half height and rotate at either 90 or 120°. Depending on the level of security required, turnstiles can be built with additional infills to stop people from passing things through the gate.

Designed with the end user in mind, TurnGuard turnstiles are easy to operate and can be configured to a range of pre-set standards using the high-spec control panel.

TurnGuard is compatible with the majority of access control systems. Safety features are built in as standard, including anti-trap and free rotation in the event of a fire.

Key features

  • Smooth and reliable

  • Controls pedestrian entry/exit

  • Ideal for managing high volumes of people

  • 15-22 people per minute in a single direction

  • CE approved

  • TUV approved

  • LPCB rated

  • Indoor or outdoor usage

  • Operates in temperatures from -30°C to 55°C

Specification

Material

Dimensions

Power

Mild steel, galvanised and powder coated
Can be made from stainless steel

Single 1280 x 1400 x 1790 (mm) 230kg approx.
Double 2450 x 1400 x 1790 (mm) 400kg approx.

Single phase
240v 50Hz 5 amps
