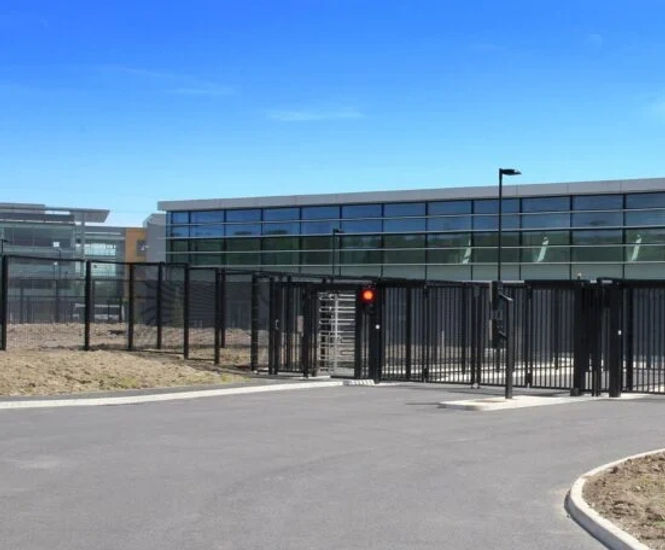

PedMaster Single turnstiles prevent unauthorised access through piggybacking and tailgating, eliminating the need for guard supervision. Manufactured to high standards, they are suitable for controlling access to reception areas, schools, public buildings, and military bases.

Key Features

  • Bi-directional or single direction only turnstiles

  • Force Tested to 1200 Newtons

  • Seamlessly forms part of the existing fence lines

  • All RAL colours available (galvanised optional cost)

  • Easy to install

  • Low maintenance

  • Pedestrian gate combination

  • Different heights available

Dimensions

Arm Diameter
42mm tube with capped ends

Single Dimensions
1280mm x 1400mm x 1790mm

Rotor
76mm tube with bottom supported bearing

Side Frames
33mm tube with welded to curve base plate

Manufacture

Constructed from durable mild or stainless steel, these turnstiles ensure long-lasting and maintenance-free performance.

Finish

Options:

  • Polyester powder-coated to minimum 80 microns

  • Any RAL colour

  • LED courtesy down light/passage indicators

Installation

Supplied as units ready to be securely bolted down and commissioned.

Technical Specifications

  • Unit weight - 230kg

  • Warranty: Minimum of 15 years against manufacturing defects

  • System Details:

    • 00% duty cycle heavy industrial usage. Single phase supply

    • Plug & play installation

    • Programmable control panel c/w fault diagnostic on screen display

    • Fire alarm input built in as standard (engages free rotation)

    • High specification turnstile to control schools/arenas and unauthorised access to secure areas

    • 90° or 120° rotor assemblies available

    • Fail safe or fail secure modes in the event of power failure
