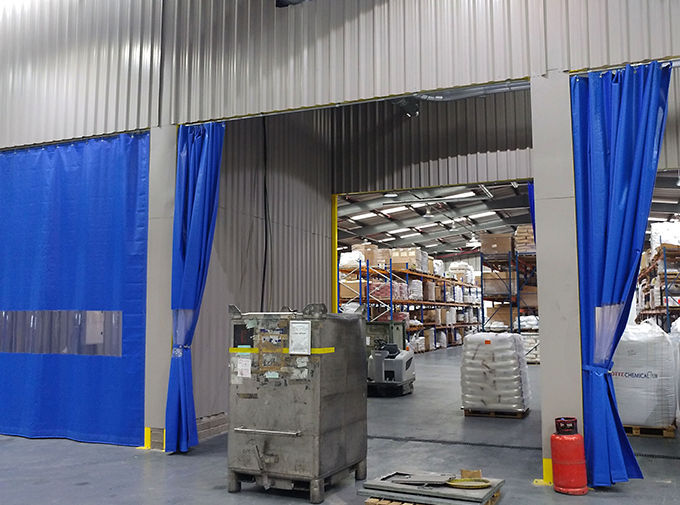

Primarily used as a curtain to provide quick temporary division of an internal area to prevent contamination and overspray during washdown, or to restrict airflow and manage temperature. It can also be used to create booths, access points and divide large areas where regular access is required. Used externally Flexicurtain can provide accessible entry on canopies and enclosures.

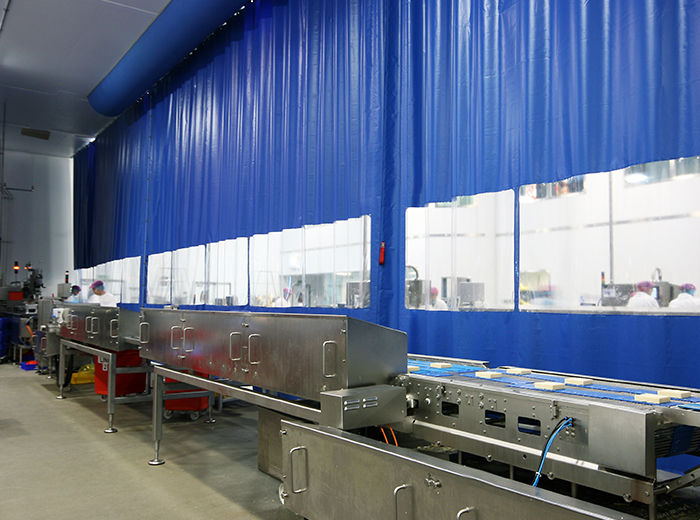

Using a range of standard fire-rated PVC materials, Flexicurtain is designed to requirements with a number of options including; vision panels, stainless steel tracks, suspended tracks, single run or bi-parting applications, and wind load straps (external applications).

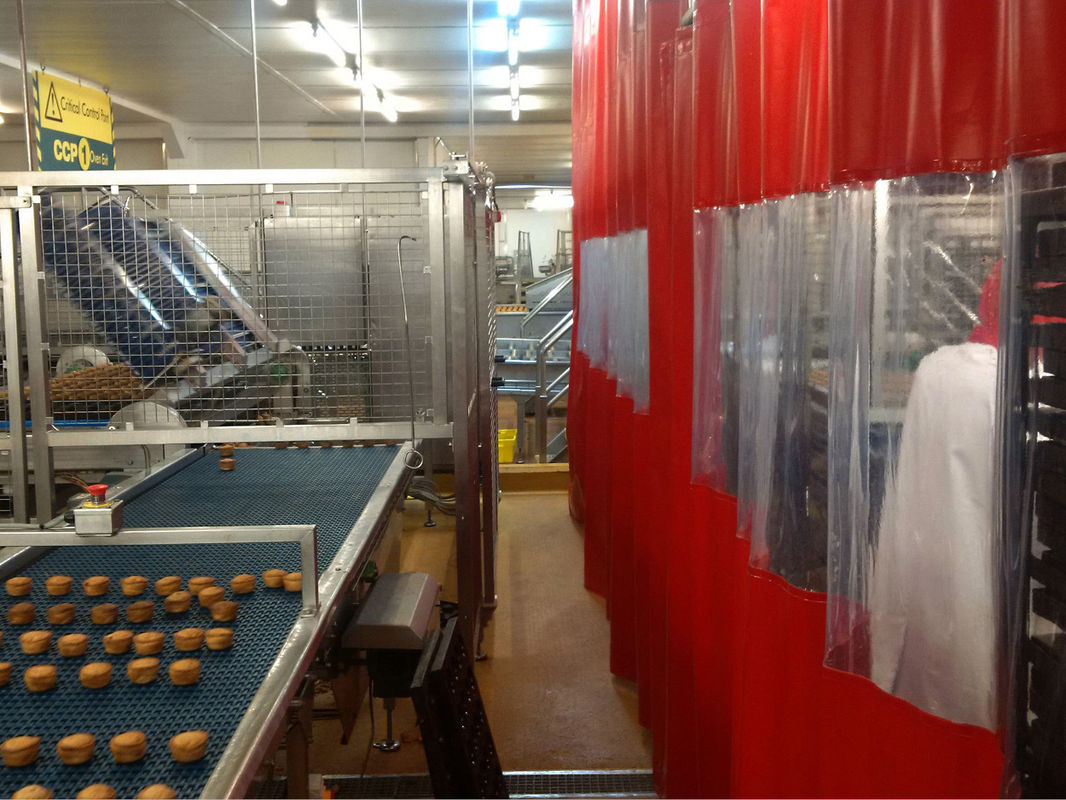

This retractable curtain is quick and clean to install, resistance-tested against a range of cleaning products, and made with antibacterial materials suitable for food, beverage and packaging environments.

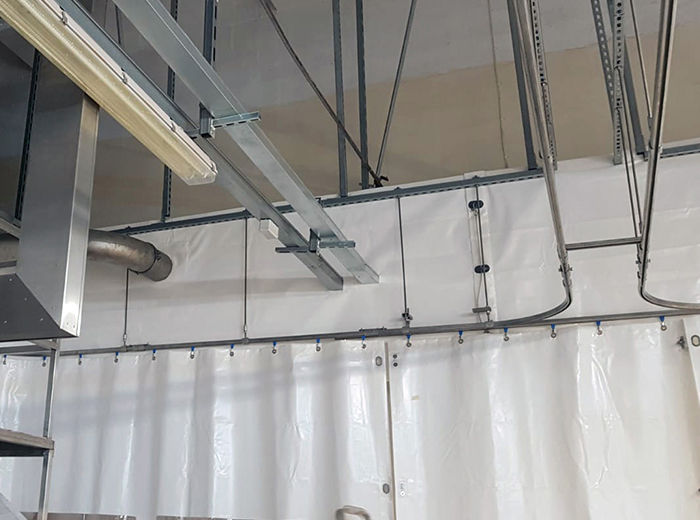

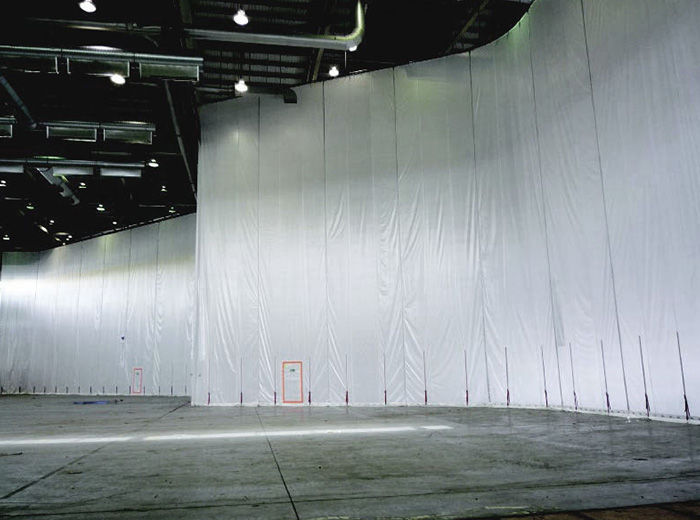

Lightweight materials make the curtain easy to deploy and retract. Floor-to-ceiling design ensures a complete barrier and maximum contamination control. Pelmets can be installed to fill in voids above the curtain for a complete dust-tight seal.

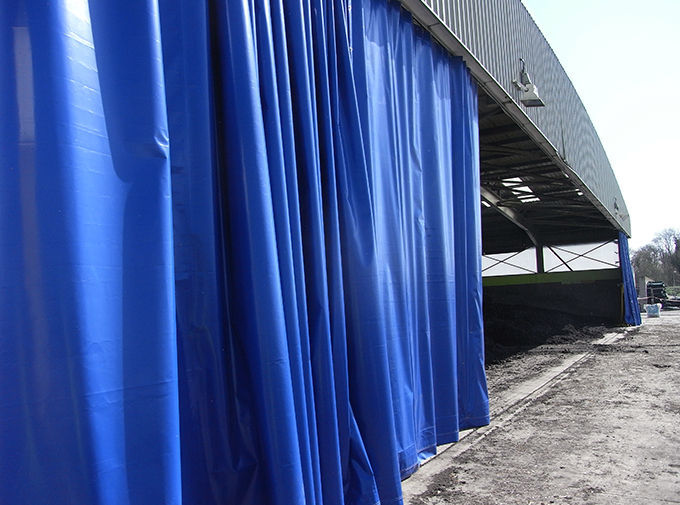

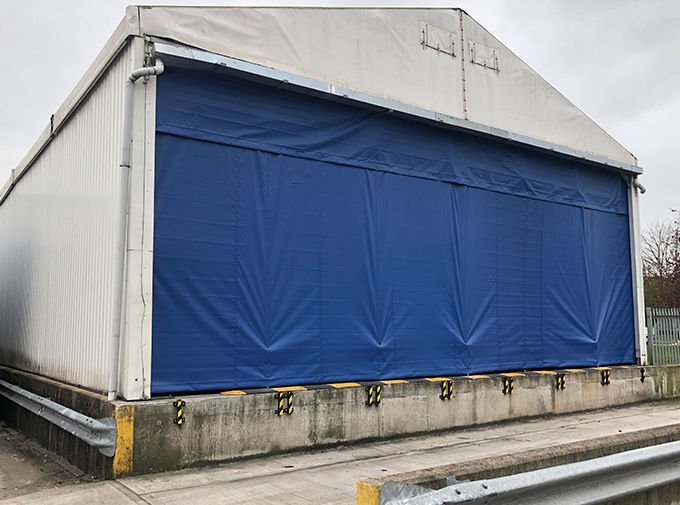

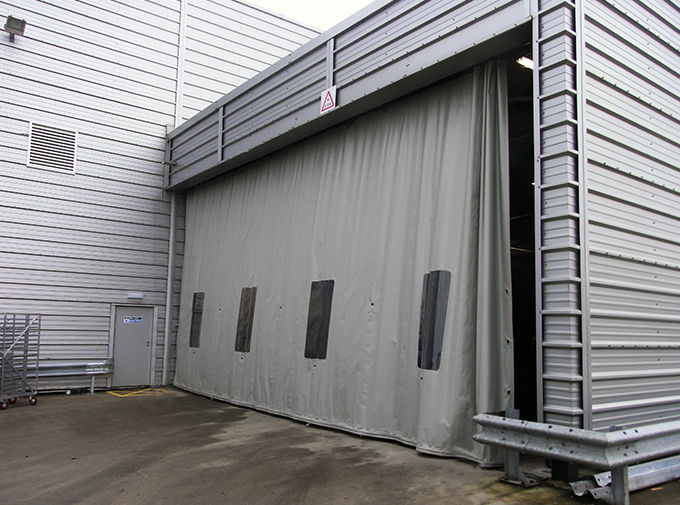

Used externally Flexicurtain can offer accessible entry with weather protection on canopies and enclosures.

Features and benefits

Prevents cross-contamination between production areas
Protects employees during processes such as welding and spraying
Quick to deploy and retract due to lightweight materials
Fire-rated material options
Antibacterial materials suitable for food, beverage, and packaging environments
Customised to meet specific business needs
Floor-to-ceiling design for maximum contamination control
Resistance tested against a range of cleaning products
Can be installed with pelmets for a dust-tight seal

Applications

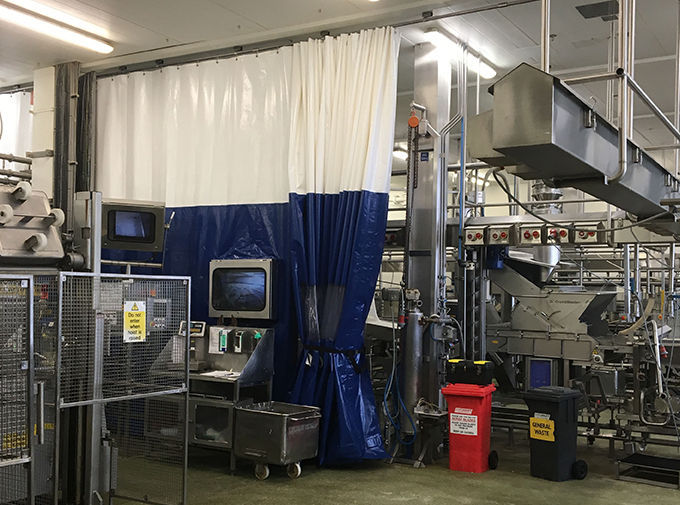

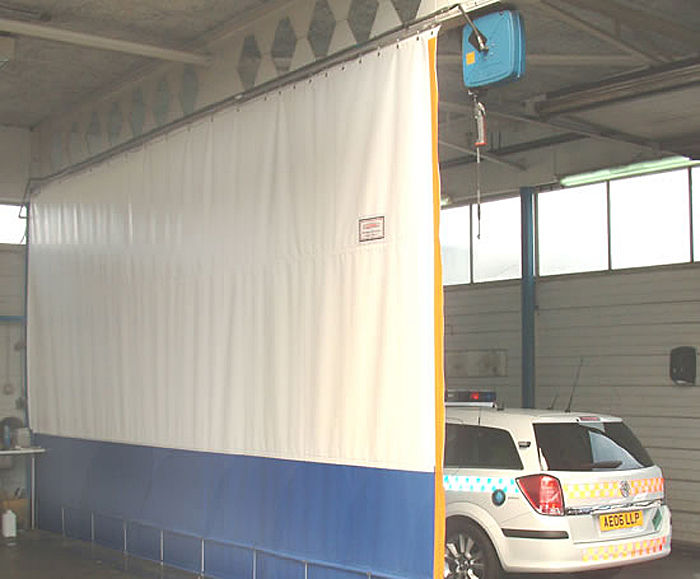

Segregation of production lines for washdown processes

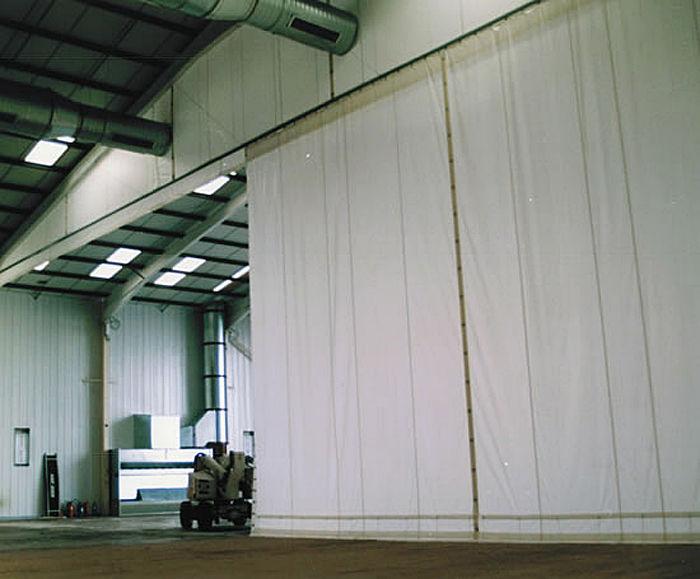

Creation of retractable walls to restrict airflow and manage temperature
Temporary segregation for access by large construction equipment
Canopy enclosure and weather protection for external areas
Employee protection in welding curtains, spray booths, and robot surrounds

Technical specification

Material composite: choice of woven glass fabric or polyester base fabric and a range of PVC, rubber or silicon coatings
Material weight: 475-1300gsm
Tensile strength: 1000-4800N / 50mm
Tear strength: 100-850N
Operating temperature: -25 / + 70°C

Materials

Main product made from polyester reinforced fire-retardant fabric with PVC coatings. Non-combustible woven glass fabric with PU coating also supplied. All materials have antibacterial coatings.

Options and variations

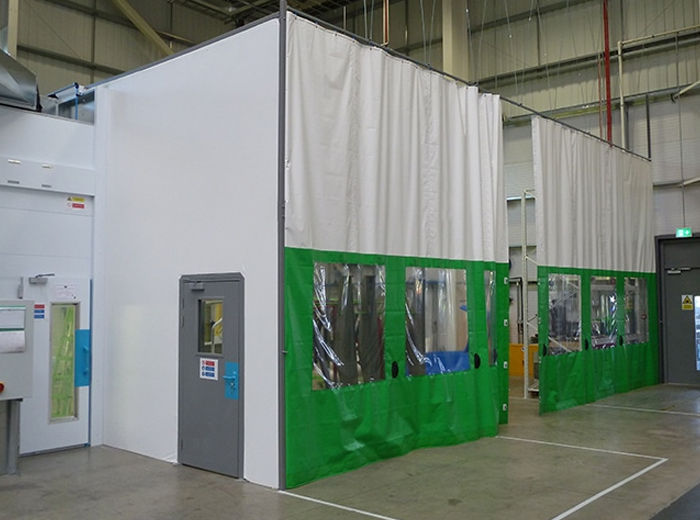

Customisation options include vision panels, stainless steel tracks, suspended tracks, single run or bi-parting applications, and wind load straps for external use. Fixtures and fittings available in galvanised steel, stainless steel, zinc plated, and nylon.

Performance

Material fire ratings include BS 5867:2008 Part 2 Type A & B, Warrington Certifire TS62 & TS63, EN13501-1 A2s1d0, EN13501-1 Bs1d0, EN13501-1 Cs2d0 (subject to material specification). Operating temperature between -40 and +70 degrees Celsius, depending on fabric type. Sound reduction between 11dB and 13dB. Thermal resistance between 5.52 and 5.40 W/m²K.

Installation

Installs quickly and cleanly. Can be fitted with pelmets to fill voids above the curtain for a dust-tight seal.
