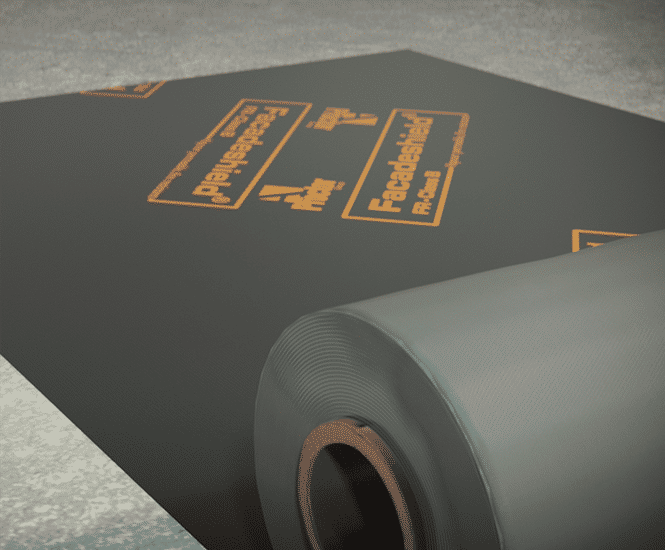

Facadeshield FR Class B is a vapour-permeable membrane with a monolithic construction, designed for use as a breather membrane in external wall systems. It allows the passage of water vapour while providing reliable resistance to external moisture in accordance with relevant industry standards. The monolithic structure supports long-term durability, maintaining water holdout performance even after extended UV exposure. The membrane achieves a Class B reaction to fire in accordance with EN 13501-1 and is supplied in roll format for ease of handling and installation.

Facadeshield FR Class B should be incorporated within a designed construction system and installed in line with project specifications and good practice guidance.

  • Vapour permeable membrane for façade and external wall build-ups

  • Classified to Euroclass B-s1,d0 for reaction to fire

  • Tested to W1 water resistance under BS EN 13859-2

  • Maintains performance after 5000h UV exposure

  • Compatible with multiple sheathing board types

  • Recommended tapes available for installation

  • Technical support and toolbox talks available

Applications

  • External wall and façade systems requiring fire safety, water resistance, and UV stability

Performance

Euroclass B-s1,d0 fire rating
W1 water resistance
Tested to 5000h UV exposure

Installation

Can be installed with a range of sheathing board substrates including Proctor A1 Cement Board

Technical support

Expert technical support and toolbox talks available

Property

Tset/Standard

Result

Total Weight

EN1849-2

148 g/m2

Tensile Strength (MD)

EN12311-1

270N/50mm

Tensile Strength (CD)

EN12311-1

225N/50mm

Elongation (MD)

EN12311-1

50%

Elongation (CD)

EN12311-1

70%

Nail Tear Resistance (MD)

EN12310-1

180N

Nail Tear Resistance (CD)

EN12310-1

220N

Sd-value

N12572

0.08m

Watertightness

EN 1928

W1

Resistance to Penetration of Air

EN12114

0.000m3/(h*m2*50Pa)

Fire Performance

EN13501-1

B-s1,d0
