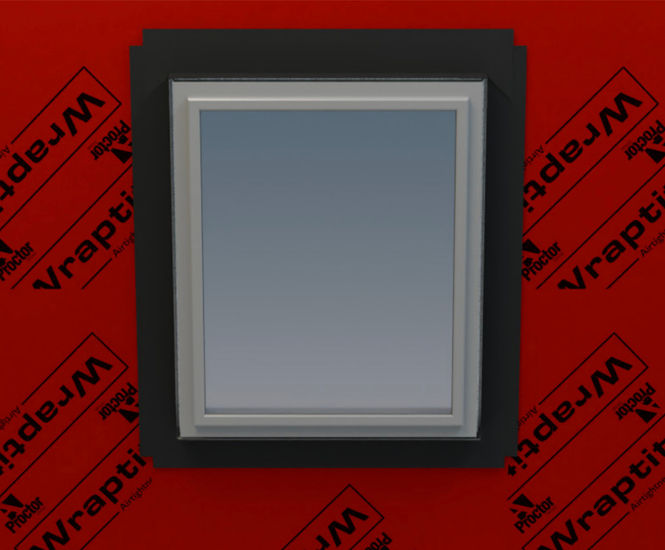

Wrapseal is a flexible interface membrane designed to create a durable airtight and weathertight seal around windows, doors and other similar openings within the building envelope.

The membrane’s flexible and fully self adhesive construction allows it to provide a continuous seal between the opening and the surrounding substrate, replacing traditional adhesive applied EPDM’s.

Wrapseal is vapour permeable and airtight, allowing moisture vapour to escape from the building fabric while maintaining airtightness performance, and resisting water penetration. Installed in conjunction with Wraptite® LF liquid flashing, the system provides secure sealing to deliver a robust installation.

  • Designed as alternative to impermeable EPDM’s

  • UV Resistant

  • Class B-s2,d0 over cement based sheathing

  • Fully self ahesive

  • Compatible with Wraptite® and Proctor A1 Cement Board

  • Flexible non-woven construction

  • Airtight and weather-resistant

  • Vapour permeable

  • Seamless sealing with Wraptite® LF

  • Compatible with multiple substrates

  • Supports high-performance building envelopes

Wrapseal

Property

Test Method

Result

Roll size

200mm / 250mm / 300mm x 50m

Tensile strength (Before ageing)

EN 12311-1

MD 490N/50mm - CD 330N/50mm

Tensile strength (After ageing)

EN 12311-1

MD 480N/50mm - CD 310N/50mm

Nominal thickness

Calibrated Deadweight Micrometer

0.38mm

Tear resistance

EN 12310-1

MD 327.38N - CD 453.38N

Basis Weight

Electronic Weigh Scale

392g/m2

Flexibility at low temperature

EN 1109

No cracks at -40°C

Installation temperature

0° to +60°C

Reaction to Fire

BS EN 13501-1

Class B-s2,d0*

Service temperature

-40° to +100°C

Resistance to penetration of air

EN 12114 - EN13859-2

<0.01m3 /(m2 .h.50Pa)

Water penetration (Before ageing)

EN 1928:2000 Method A

Class W1

UV resistance uncovered

12 months

Water penetration (After ageing)

EN 1928:2000 Method A

Class W1

Water Vapour Permeability

EN ISO 12572 (C)

Sd 0.06m
