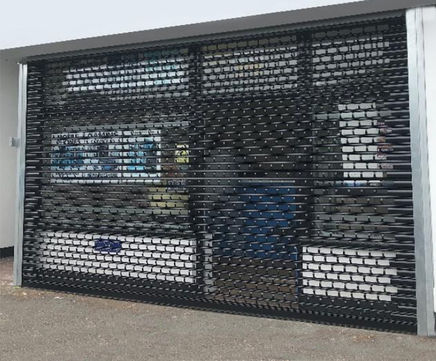

Product name SG75 Punched Steel Rolling Grille
Type Rolling
Applications Bars, kiosks and receptions
Doorways
Shop fronts / entrances
Material Mild steel
Features Perforated




SG75 Punched Steel Rolling Grille can be offered with counterbalanced spring & lock operation, or for those of a wider span or out of reach height we offer motorised operation with emergency manual over-rides.

The SimFlex range includes high strength steel roller shutters up to 7m high, glazed models, using thick Lexan polycarbonate sheets, plastic linked grilles for bar tops, steel or aluminium tube and link brickbond grilles and perforated steel roller shutters. SimFlex's range provides flexible solutions to storefront security and design.

Curtain Construction & Weight

75mm x 17mm interlocking 20 gauge convex steel lath with either 47mm x 76mm or 25mm x 150mm punched holes. Weight 11kg m2.

Bottom Bar & Guides

The bottom bar consists of a mild steel 75mm x 51mm ‘T’ Bar or 31 x 68mm ‘L’ section. Guides are 65mm x 32mm x 3mm prefixed to 40mm x 40mm x 3mm unistrut for ease of installation (subject to shutter size)

Shutter Hoods

Galvanised steel end plates with locating lugs for strength and safety with preformed 2-piece aluminium hood. Shutter hood ranges from 250mm to 360mm, subject to size of the shutter.

Operation and Locking

Manual spring and lock operation, spring balanced barrel with either bottom bar
lock or guide rail bullet locks.
Motorised with tubular 220/240 volt single-phase motor with control options
including keyswitch, rocker switch, push button or remote radio control with a
hand-held transmitter, manual wind and brake.

Finishes/ Colour

Galvanised as standard.
Polyester powder-coated (PPC) to any stocked BS or RAL colour or to any other
non-standard colour at additional cost.

Applications

Medium to high security office, commercial and industrial applications.
Especially suitable where superior aesthetics are required due to unique guide
section and continental style hood.


SG75 Punched Steel Rolling Grille can be offered with counterbalanced spring & lock operation, or for those of a wider span or out of reach height we offer motorised operation with emergency manual over-rides.

The SimFlex range includes high strength steel roller shutters up to 7m high, glazed models, using thick Lexan polycarbonate sheets, plastic linked grilles for bar tops, steel or aluminium tube and link brickbond grilles and perforated steel roller shutters. SimFlex's range provides flexible solutions to storefront security and design.

Curtain Construction & Weight

75mm x 17mm interlocking 20 gauge convex steel lath with either 47mm x 76mm or 25mm x 150mm punched holes. Weight 11kg m2.

Bottom Bar & Guides

The bottom bar consists of a mild steel 75mm x 51mm ‘T’ Bar or 31 x 68mm ‘L’ section. Guides are 65mm x 32mm x 3mm prefixed to 40mm x 40mm x 3mm unistrut for ease of installation (subject to shutter size)

Shutter Hoods

Galvanised steel end plates with locating lugs for strength and safety with preformed 2-piece aluminium hood. Shutter hood ranges from 250mm to 360mm, subject to size of the shutter.

Operation and Locking

Manual spring and lock operation, spring balanced barrel with either bottom bar
lock or guide rail bullet locks.
Motorised with tubular 220/240 volt single-phase motor with control options
including keyswitch, rocker switch, push button or remote radio control with a
hand-held transmitter, manual wind and brake.

Finishes/ Colour

Galvanised as standard.
Polyester powder-coated (PPC) to any stocked BS or RAL colour or to any other
non-standard colour at additional cost.

Applications

Medium to high security office, commercial and industrial applications.
Especially suitable where superior aesthetics are required due to unique guide
section and continental style hood.
