Product name PRO-INNA-DOR
Fire rating (min) 120
240
60
Door leaf Mild steel
Product accreditation BS 476-20:1987
BS 476-22:1987
BS EN 1634-1:2008
Operation Manual

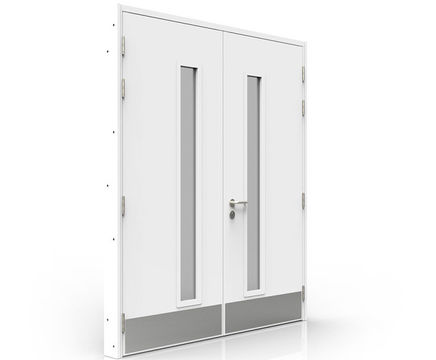

PRO-INNA-DOR internal steel fire doors are third party certified with a fire rating up to 4 hours. They offer protection to personnel and property from the spread of flames and smoke in the event of a fire.

Manufactured in the UK, the contemporary flush design of the PRO-INNA-DOR and the wide range of hardware and finishes available ensure it offers an attractive, strong, durable alternative to timber doors. The PRO-INNA-DOR is specified for a wide range of internal applications and can be found in schools, hospitals, offices and retail outlets.

Key features and benefits

  • Third party CERTIFIRE fire rated up to 240 minutes
  • Tested to BS 476 Parts 20 & 22, and BS EN 1634
  • Can be used as a fire door or fire exit door – when fitted with appropriate panic hardware to comply with BS EN 1125 and BS EN 179
  • Manufactured from corrosion resistant Magnelis© steel, offering a 10 year anti-corrosion guarantee with a standard PPC finish
  • Made to measure
  • Latched or unlatched options available
  • Range of vision panels available with standard glazing - 8mm Firelite Safety
  • Louvre panels with a fire block louvre system can be fitted to fire rated doors for rooms that require ventilation and fire protection
  • Side and over panel arrangements can be supplied – solid, glazed, louvred, hinged, removable, flush
  • Wide range of lock options including mortice locks and latches and access control
  • Supplied fully assembled with hardware factory fitted, saving time on site
  • Adjustable fixing feet and variable sub-frame to reduce installation time

Fire rating

The CERTIFIRE third party accreditation scheme ensures correct manufacturing processes are followed and provides assurance of performance, quality, reliability and traceability.

The PRO-INNA-DOR has been tested to BS 476 Parts 20 & 22, and BS EN 1634.

PRO-INNA-DOR60 - up to 1 hour fire rating
PRO-INNA-DOR120 – up to 2 hours fire rating
PRO-INNA-DOR240 - up to 4 hours fire rating

Finishes

All doors are supplied with a choice of polyester powder coatings from Profab's standard PPC colour range.

Specification

  • Suitability: suitable for vertical internal use to offer protection to personnel and property from the spread of flames and smoke in the event of a fire. Ideal for use in schools, hospitals, offices and retail outlets. Manufactured to order
  • Material: door leaf 1.5mm / Door frame 1.2mm corrosion resistant Magnelis© sheets. Infill - self-support resin impregnated honeycomb core with the option of mineral wool for improved acoustic performance
  • Door configuration: single door (SD) and double door (DD) options, latched or unlatched
  • Door thickness: 54mm
  • Finish: white powder coated frame and door to RAL 9010M (matt finish) as standard. Optional finishes - non-standard RAL colours, PVC Laminate from standard range, Woodgrain PVC laminates, Stainless Steel brushed, polished or patterned or unfinished for site finishing
  • Locks: various options of Mortice Locks and Latches/Mortice Multi-part Locks/Locking Access Control Devices available – refer to datasheet


PRO-INNA-DOR internal steel fire doors are third party certified with a fire rating up to 4 hours. They offer protection to personnel and property from the spread of flames and smoke in the event of a fire.

Manufactured in the UK, the contemporary flush design of the PRO-INNA-DOR and the wide range of hardware and finishes available ensure it offers an attractive, strong, durable alternative to timber doors. The PRO-INNA-DOR is specified for a wide range of internal applications and can be found in schools, hospitals, offices and retail outlets.

Key features and benefits

  • Third party CERTIFIRE fire rated up to 240 minutes
  • Tested to BS 476 Parts 20 & 22, and BS EN 1634
  • Can be used as a fire door or fire exit door – when fitted with appropriate panic hardware to comply with BS EN 1125 and BS EN 179
  • Manufactured from corrosion resistant Magnelis© steel, offering a 10 year anti-corrosion guarantee with a standard PPC finish
  • Made to measure
  • Latched or unlatched options available
  • Range of vision panels available with standard glazing - 8mm Firelite Safety
  • Louvre panels with a fire block louvre system can be fitted to fire rated doors for rooms that require ventilation and fire protection
  • Side and over panel arrangements can be supplied – solid, glazed, louvred, hinged, removable, flush
  • Wide range of lock options including mortice locks and latches and access control
  • Supplied fully assembled with hardware factory fitted, saving time on site
  • Adjustable fixing feet and variable sub-frame to reduce installation time

Fire rating

The CERTIFIRE third party accreditation scheme ensures correct manufacturing processes are followed and provides assurance of performance, quality, reliability and traceability.

The PRO-INNA-DOR has been tested to BS 476 Parts 20 & 22, and BS EN 1634.

PRO-INNA-DOR60 - up to 1 hour fire rating
PRO-INNA-DOR120 – up to 2 hours fire rating
PRO-INNA-DOR240 - up to 4 hours fire rating

Finishes

All doors are supplied with a choice of polyester powder coatings from Profab's standard PPC colour range.

Specification

  • Suitability: suitable for vertical internal use to offer protection to personnel and property from the spread of flames and smoke in the event of a fire. Ideal for use in schools, hospitals, offices and retail outlets. Manufactured to order
  • Material: door leaf 1.5mm / Door frame 1.2mm corrosion resistant Magnelis© sheets. Infill - self-support resin impregnated honeycomb core with the option of mineral wool for improved acoustic performance
  • Door configuration: single door (SD) and double door (DD) options, latched or unlatched
  • Door thickness: 54mm
  • Finish: white powder coated frame and door to RAL 9010M (matt finish) as standard. Optional finishes - non-standard RAL colours, PVC Laminate from standard range, Woodgrain PVC laminates, Stainless Steel brushed, polished or patterned or unfinished for site finishing
  • Locks: various options of Mortice Locks and Latches/Mortice Multi-part Locks/Locking Access Control Devices available – refer to datasheet
