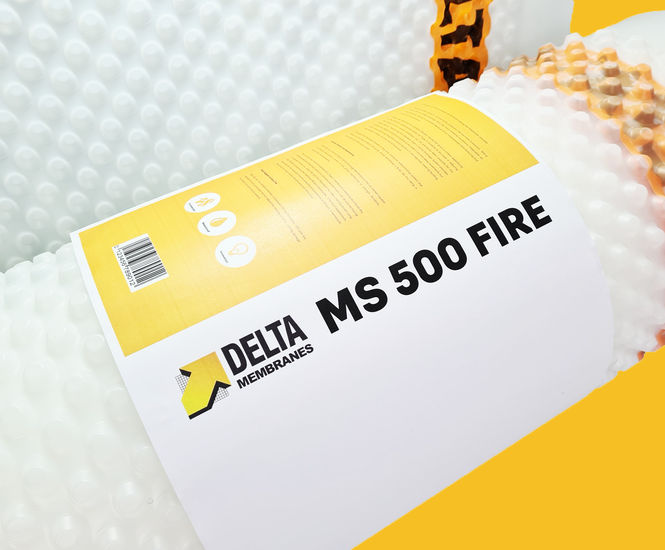

Delta MS 500 Fire Retardant is an 8mm-thick studded Type C cavity drainage membrane that has been manufactured with DELTASAFE, an innovative fire-retardant property which enables the product to achieve a Euroclass rating of B-S2, d0 in accordance with EN 13501-1:2018.

This fire-retardant high-density polyethylene (HDPE) membrane has an 8mm studded, clear profile.

Suitable for use on the internal faces of walls and floors as a water management system for the protection of below-ground structures against the potentially adverse effects of ground water ingress.

Applications

  • Euroclass rating: B-S2, d0 in accordance with EN 13501-1:2018

  • Type C Drained Protection in accordance with BS 8102:2009

  • Suitable for waterproofing and damp-proofing

  • Suitable for new, existing and retrofit basement projects

  • Flexibility to cope in structures where movement or vibration can be problematic

  • A “reversible” system, which will minimise damage to historical or heritage structures

  • Virgin high-density polyethylene studded/moulded sheet (HDPE)

  • An effective barrier to the transmission of salts, liquid water and water vapour

  • Resistant to chemicals, root penetration, rot-proof, neutral towards drinking water

  • Suitable for flood resilience

  • Resistant to carbon dioxide, radon and methane

It can support a dry lining, screed or flooring, in the following situations:

  • on damp walls and floors in underground situations subject to high groundwater levels, and perennial moisture

  • on vaulted ceilings of archways or cellars subject to water ingress

  • in conjunction with a remedial dpc system where the walls and floors have a high salt content, and/or it is necessary to complete the installation immediately without allowing a period for initial drying

  • over walls and floors which have a friable or painted surface, are contaminated (eg with oil or mould), or have a high salt content

  • as a structural waterproofing membrane in areas subject to vibration

Product details

  • Material: high-density polyethylene (HDPE) with DELTASAFE

  • Sheet thickness: 0.5mm

  • Stud height: 8mm

  • Roll size: 2.4 x 20m

  • Compressive strength: >250 kN/M²

  • Drainage capacity:
    2.25 L/S M
    135 L/MIN M
    8 100 L/H M

  • Air volume between studs: 5.3 L/M²

  • Temperature resistance: -30°C to +80°C

  • Reaction to fire: EN 13501-1:2018 Class B-S2, d0

  • R value: 0.12 M² K/W

Specifications

  • NBS Specification J40 (Clause 290) Flexible Sheet Tanking/Damp proofing.

  • BS 8102:2009 Type C Drained Protection
