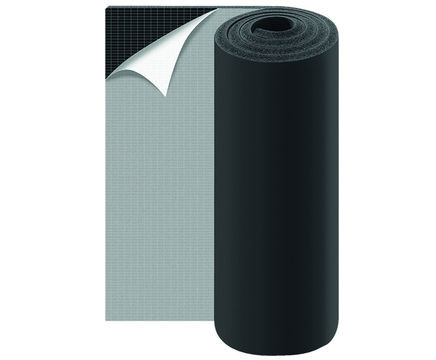

Product name K-FLEX ECO SHEETS
Format Sheets
Suitability Ducts
Pipes
Material Closed cell foam
Elastomer
Features Flexible
Fungi resistant
Heat resistant
Moisture resistant
Self adhesive
K value (W/mK) 0,036 - 0,042
Fire rating BS 476-7, Class 1
Width (mm) 1000 mm
Thickness (mm) 6-10-13-19-25-32-40-50 mm




K-FLEX ECO elastomeric insulation sheets are formulated and produced without using halogens. In the event of a fire, fumes given off during a fire are transparent and non-toxic to anyone in the vicinity.

  • Elastomeric insulation for improved environmental safety
  • Non-toxic, transparent fumes in the event of a fire
  • No PVC, HCFC, CFC
  • Halogen free
  • Black

Applications

  • Heating
  • Air conditioning / ventilation
  • Refrigeration
  • Industrial
  • Oil & gas
  • Ship building
  • Trains

Dimensions

K-FLEX® ECO - Sheets
Thickness: 6-10-13-19-25-32-40-50 mm
Width: 1000 mm

K-FLEX® ECO - Adhesive Sheets
Thickness: 6-10-13-19-25-32-40-50 mm
Width: 1000 mm

Technical data

Temperature range
From -165 °C* to +120 °C
Test method:EN 14706, EN 14707

Thermal conductivity λ W/(m•K)
-20 °C = 0,036
   0 °C = 0,038
+20 °C = 0,040
+40 °C = 0,042
Test method: EN 13787, EN 12667, EN ISO 8497

Corrosion prevention
pH neutral (7±0,5)
Test method: EN 13468

Permeability µ
≥ 3000
Test method: EN 12086

Fire rating
Euroclass E, EN 13501-1
Class 1, BS 476 Part 6/7

Ecological
Halogen free - PVC - CFC - HCFC Free

Marine approvals
LR - DNV
CE-MARINE (Bureau Veritas) - US NAVY

Fume classification (toxicity)
IMO RES 61(67)

Fume density (NBS room)
≤ Dm 200

Color
Black as standard
Green to special order


K-FLEX ECO elastomeric insulation sheets are formulated and produced without using halogens. In the event of a fire, fumes given off during a fire are transparent and non-toxic to anyone in the vicinity.

  • Elastomeric insulation for improved environmental safety
  • Non-toxic, transparent fumes in the event of a fire
  • No PVC, HCFC, CFC
  • Halogen free
  • Black

Applications

  • Heating
  • Air conditioning / ventilation
  • Refrigeration
  • Industrial
  • Oil & gas
  • Ship building
  • Trains

Dimensions

K-FLEX® ECO - Sheets
Thickness: 6-10-13-19-25-32-40-50 mm
Width: 1000 mm

K-FLEX® ECO - Adhesive Sheets
Thickness: 6-10-13-19-25-32-40-50 mm
Width: 1000 mm

Technical data

Temperature range
From -165 °C* to +120 °C
Test method:EN 14706, EN 14707

Thermal conductivity λ W/(m•K)
-20 °C = 0,036
   0 °C = 0,038
+20 °C = 0,040
+40 °C = 0,042
Test method: EN 13787, EN 12667, EN ISO 8497

Corrosion prevention
pH neutral (7±0,5)
Test method: EN 13468

Permeability µ
≥ 3000
Test method: EN 12086

Fire rating
Euroclass E, EN 13501-1
Class 1, BS 476 Part 6/7

Ecological
Halogen free - PVC - CFC - HCFC Free

Marine approvals
LR - DNV
CE-MARINE (Bureau Veritas) - US NAVY

Fume classification (toxicity)
IMO RES 61(67)

Fume density (NBS room)
≤ Dm 200

Color
Black as standard
Green to special order
