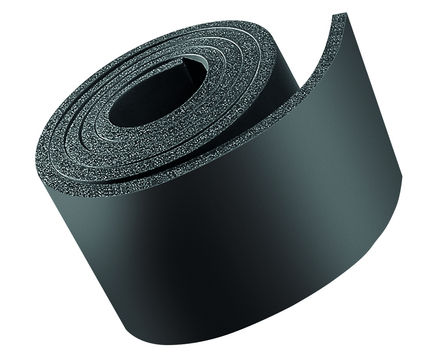

Product name K-FLEX ST SHEETS
Format Sheets
Suitability Ducts
Pipes
Material Closed cell foam
Elastomer
Features Flexible
Fungi resistant
Heat resistant
Moisture resistant
Fire rating BS 476-7, Class 0
BS EN ISO 13501-1 (Euroclass B)
Width (mm) 3-60
Thickness (mm) 1000/1500




K-FLEX ST elastomeric insulation sheets provide thermal insulation for industrial, commercial and civil applications, including refrigeration, air conditioning, heating and plumbing, tanks, pipe fittings and water ducts.

  • Elastomeric insulation for civil and industrial use
  • Temperatures from -165 °C to +110 °C
  • Euroclass B-s3, d0
  • Fine closed cellular structure
  • High technical performance
  • Resistant to mould, fungi and bacteria
  • Light and flexible

Dimensions

Thickness: 3-6-10-13-16-19-25-32-40-50-60 mm

Width: 1000/1500 mm

Technical data

Temperature range
From -165 °C to +85 °C
Test method: EN 14706, EN 14707

For industrial applications, product can be applied down to -198°C.
For applications below -40°C, contact the technical department.

Thermal conductivity λ W/(m•K)
Thicknesses ≤ 25mm
-20 °C = 0,031
   0 °C = 0,033
+20 °C = 0,035
+40 °C = 0,037

Thicknesses > 25mm
-20 °C = 0,034
   0 °C = 0,036
+20 °C = 0,038
+40 °C = 0,040

Test method: EN 13787, EN ISO 8497

Corrosion prevention
pH neutral (7±0,5)
Test method: EN 13468

Permeability μ
Thicknesses ≤ 25mm
≥ 10000

Thicknesses > 25mm
≥ 7000

Test method: EN 12086

Fire rating
Euroclass B-s3, d0 EN 13501-1
Class 0, BS 476 Part 6/7

Ecological data
No CFCs or HCFCs


K-FLEX ST elastomeric insulation sheets provide thermal insulation for industrial, commercial and civil applications, including refrigeration, air conditioning, heating and plumbing, tanks, pipe fittings and water ducts.

  • Elastomeric insulation for civil and industrial use
  • Temperatures from -165 °C to +110 °C
  • Euroclass B-s3, d0
  • Fine closed cellular structure
  • High technical performance
  • Resistant to mould, fungi and bacteria
  • Light and flexible

Dimensions

Thickness: 3-6-10-13-16-19-25-32-40-50-60 mm

Width: 1000/1500 mm

Technical data

Temperature range
From -165 °C to +85 °C
Test method: EN 14706, EN 14707

For industrial applications, product can be applied down to -198°C.
For applications below -40°C, contact the technical department.

Thermal conductivity λ W/(m•K)
Thicknesses ≤ 25mm
-20 °C = 0,031
   0 °C = 0,033
+20 °C = 0,035
+40 °C = 0,037

Thicknesses > 25mm
-20 °C = 0,034
   0 °C = 0,036
+20 °C = 0,038
+40 °C = 0,040

Test method: EN 13787, EN ISO 8497

Corrosion prevention
pH neutral (7±0,5)
Test method: EN 13468

Permeability μ
Thicknesses ≤ 25mm
≥ 10000

Thicknesses > 25mm
≥ 7000

Test method: EN 12086

Fire rating
Euroclass B-s3, d0 EN 13501-1
Class 0, BS 476 Part 6/7

Ecological data
No CFCs or HCFCs
