Product name K-FLEX ST/SK Adhesive Tubes
Format Tubes
Suitability Ducts
Pipes
Material Closed cell foam
Elastomer
Features Flexible
Fungi resistant
Heat resistant
Moisture resistant
Self adhesive
K value (W/mK) 0,031 - 0,037
Fire rating BS 476-7, Class 0
BS EN ISO 13501-1 (Euroclass B)
Length (mm) 2000
Width (mm) 12 - 114
Thickness (mm) 9 - 32

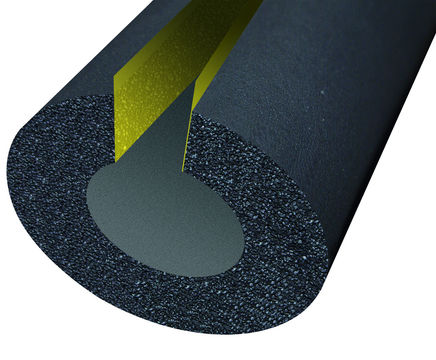

K-FLEX® ST/SK is a cut-to-length self-seal elastomeric insulator. The innovative system includes adhesive tapes which are quick and easy to use.

Self-sealing insulation tubes save on installation time, reduce the use of other adhesives and improve on-site working conditions.

K-FLEX® ST/SK is also available as version with overlap - K-FLEX® ST/SK with overlap.

Applications

  • Air-conditioning
  • Refrigeration
  • Heating and plumbing
  • Tanks
  • Pipe fittings
  • Water ducts

Dimensions

Length: 2m
Thickness: 9, 13, 19, 25, 32mm
Diameter: 12-114 mm

Technical data

Temperature range
From -40 °C* to +85 °C
Test method: EN 14706, EN 14707

Thermal conductivity λ W/(m•K)
Thicknesses ≤ 25mm
-20 °C = 0,031
   0 °C = 0,033
+20 °C = 0,035
+40 °C = 0,037

Thicknesses > 25mm
-20 °C = 0,034
   0 °C = 0,036
+20 °C = 0,038
+40 °C = 0,040

Test method: EN 13787, EN ISO 8497

Corrosion prevention
pH neutral (7±0,5)
Test method: EN 13468

Permeability μ
Thicknesses ≤ 25mm
≥ 10000

Thicknesses > 25mm
≥ 7000

Test method: EN 12086

Fire rating
Euroclass BL-s2, d0 EN 13501-1
Class 0, BS 476 Part 6/7

Ecological data
No CFCs or HCFCs


K-FLEX® ST/SK is a cut-to-length self-seal elastomeric insulator. The innovative system includes adhesive tapes which are quick and easy to use.

Self-sealing insulation tubes save on installation time, reduce the use of other adhesives and improve on-site working conditions.

K-FLEX® ST/SK is also available as version with overlap - K-FLEX® ST/SK with overlap.

Applications

  • Air-conditioning
  • Refrigeration
  • Heating and plumbing
  • Tanks
  • Pipe fittings
  • Water ducts

Dimensions

Length: 2m
Thickness: 9, 13, 19, 25, 32mm
Diameter: 12-114 mm

Technical data

Temperature range
From -40 °C* to +85 °C
Test method: EN 14706, EN 14707

Thermal conductivity λ W/(m•K)
Thicknesses ≤ 25mm
-20 °C = 0,031
   0 °C = 0,033
+20 °C = 0,035
+40 °C = 0,037

Thicknesses > 25mm
-20 °C = 0,034
   0 °C = 0,036
+20 °C = 0,038
+40 °C = 0,040

Test method: EN 13787, EN ISO 8497

Corrosion prevention
pH neutral (7±0,5)
Test method: EN 13468

Permeability μ
Thicknesses ≤ 25mm
≥ 10000

Thicknesses > 25mm
≥ 7000

Test method: EN 12086

Fire rating
Euroclass BL-s2, d0 EN 13501-1
Class 0, BS 476 Part 6/7

Ecological data
No CFCs or HCFCs
