Type Expansion joints
Usage Floors
Exterior / interior Exterior locations
Interior locations

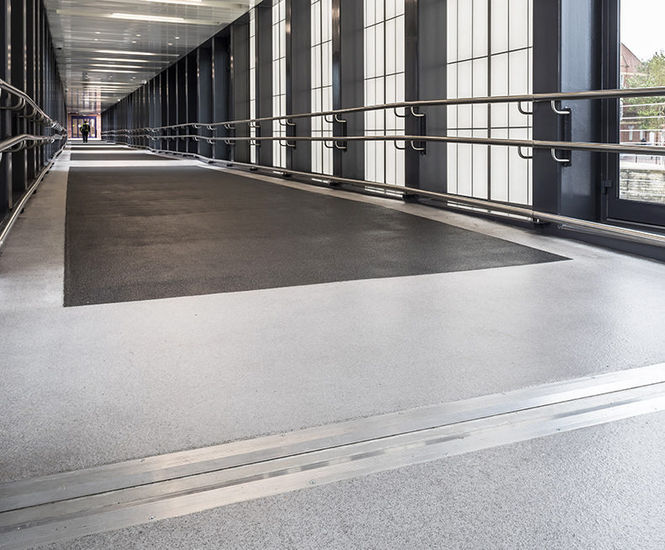

Heavy-duty aluminium recess-mounted floor joint covers utilising a free-floating centre plate held in position by cover plates, offering horizontal movement range up to 100% of the joint width. These covers can be used in areas with some vehicular access and are suitable for interior and exterior applications.

For areas where trolley traffic is prevalent, AL-HDC model, incorporating a secondary centre plate, is recommended.

Details

  • Joint width: up to 100mm
  • Horizontal movement: up to +95/-40mm
  • Vertical movement: up to ±3mm
  • Lateral movement: ∞ (Infinite; restricted by site conditions)
  • Load capability: 1000kg point load

AL-HD floor covers are supplied in mill finish aluminium as standard. A range of accessories, including fire, moisture and acoustic barriers is available to suit.


Heavy-duty aluminium recess-mounted floor joint covers utilising a free-floating centre plate held in position by cover plates, offering horizontal movement range up to 100% of the joint width. These covers can be used in areas with some vehicular access and are suitable for interior and exterior applications.

For areas where trolley traffic is prevalent, AL-HDC model, incorporating a secondary centre plate, is recommended.

Details

  • Joint width: up to 100mm
  • Horizontal movement: up to +95/-40mm
  • Vertical movement: up to ±3mm
  • Lateral movement: ∞ (Infinite; restricted by site conditions)
  • Load capability: 1000kg point load

AL-HD floor covers are supplied in mill finish aluminium as standard. A range of accessories, including fire, moisture and acoustic barriers is available to suit.
