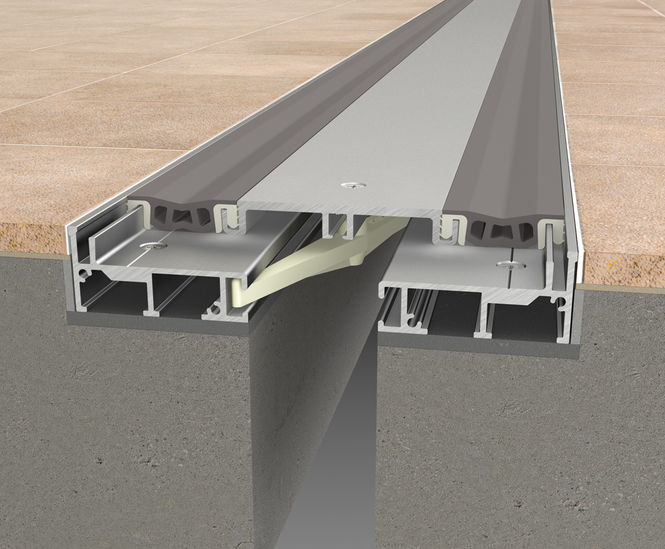

DGTP and GTP Series gasketed floor joint covers
Recess-mounted gasketed floor covers designed for applications with large movement requirements. These flush fitting covers are pedestrian and wheel friendly and are easy to clean and maintain, making them suitable for interiors where hygiene is important. Two depths are available to suit project requirements. 30mm deep DGTR models can be
Recess-mounted gasketed floor covers designed for applications with large movement requirements. These flush fitting covers are pedestrian and wheel friendly and are easy to clean and maintain, making them suitable for interiors where hygiene is important.
Two depths are available to suit project requirements. 30mm deep DGTR models can be installed over varying widths, whilst shallower GTR models (16mm) require a consistent joint width for installation.
Joint width: up to 110mm
Horizontal movement: up to ±38mm
Vertical movement: up to ±15mm
Lateral movement: up to ±8mm
Load capability: 250kg point load
Aluminium sections Mill finished as standard, except for flush centre plate and wall frames, which are supplied in a natrual anodised finish.
Gaskets Co-extruded Thermoplastic Rubber (TPR) gaskets are available in four standard colours (black, white, grey, greige). Other colours can be supplied subject to minimum quantity.
