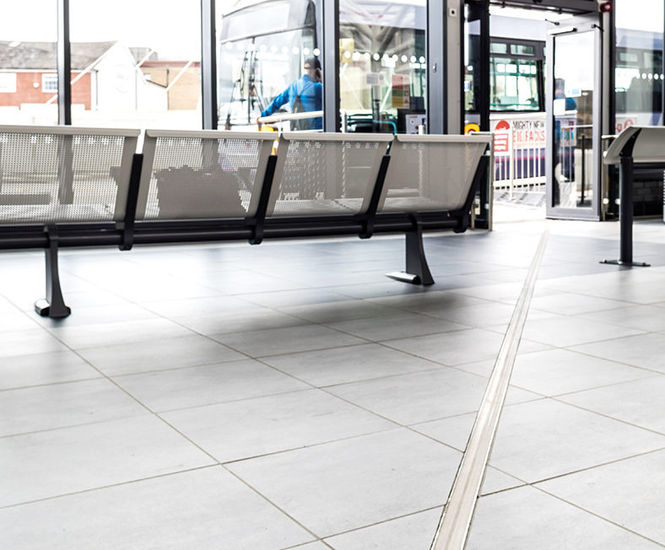

Standard GFT floor expansion joint covers are suitable for interior floor joints up to 50mm wide. Available in four frame depths to suit project requirements. Covers can be fitted flush to the floor screed or left proud to butt up to a carpet or vinyl finish.

Colours and finishes

Aluminium sections
Floor frames: natural, clear anodised finish.
Support / wall frames: mill finished as standard.

Gaskets
Co-extruded Thermoplastic Rubber (TPR) in black, white, grey and greige.
Other colours can be supplied subject to minimum quantity.

Lengths

Aluminium sections: 3m
Gaskets: cut to suit from (max) 32m rolls

Installation

Floor: fixings (by others) to suit substrate at 450mm centres and to achieve minimum 40mm embedment

Wall: fixings (by others) to suit substrate at 450mm centres

Accessories

  • Fire barriers

  • Moisture barriers

  • Acoustic barriers

Complementary FWF(C) and FWFP(C) series wall / ceiling joint covers

Range

Floor-to-floor covers

Model

Rapid Ship?

Joint
Width
(mm)

Frame
Depth
(mm)

Exposed
Surface
(mm)

Min. Recess
Depth Required
(mm)

Min. Recess
Width Required
(mm)

Horizontal
Movement
(mm)

Vertical
Movement
(mm)

Lateral
Movement
(mm)

GFT-100/25

NO

25

25

30

30

135

±5

±3

±2

GFT-100/50

NO

25

51

32

56

137

±5

±3

±2

GFT-100/75

NO

25

75

32

80

137

±5

±3

±2

GFT-200/25

NO

50

25

47

30

158

±10

±3

±3

GFT-200/50

Buy Now

50

51

48

56

158

±10

±3

±3

GFT-200/75

NO

50

75

48

80

158

±10

±3

±3

Floor-to-wall covers

Model

Rapid Ship?

Joint
Width
(mm)

Frame
Depth
(mm)

Exposed
Surface
(mm)

Min. Recess
Depth Required
(mm)

Min. Recess
Width Required
(mm)

Horizontal
Movement
(mm)

Vertical
Movement
(mm)

Lateral
Movement
(mm)

GFTW-100/25

NO

25

25

32

30

80

±5

±3

±2

GFTW-100/50

NO

25

51

32

56

82

±5

±3

±2

GFTW-100/75

NO

25

75

32

80

82

±5

±3

±2

GFTW-200/25

NO

50

25

50

30

103

±10

±3

±3

GFTW-200/50

NO

50

51

50

56

104

±10

±3

±3

GFTW-200/75

NO

50

75

50

80

104

±10

±3

±3
