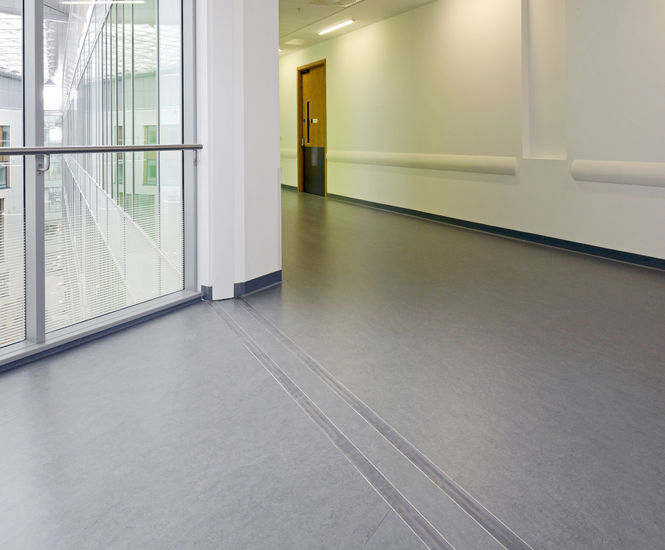

DGTR Series recessed floor expansion joint covers are designed for interior floor joints up to 110mm wide and offer up to +/-38mm horizontal movement. Their aluminium centre plate has a 3.2mm deep recess to accept a vinyl floor, bonded carpet or other floor finish for maximum concealment. It can be installed over a range of joint widths, or over uneven joint widths, whilst still maintaining the same movement capacity.

Specification

  • Colours and finishes: aluminium sections are mill finished as standard. Exposed wall frames are supplied clear anodised. CS TPR Gasket is available in four standard colours. Other colours can be supplied subject to minimum quantity.
  • Load capability: 250kg point load

Optional accessories

  • Fire barriers
  • Moisture barriers
  • Acoustic barriers

Complementary wall/ceiling joint covers are available.
