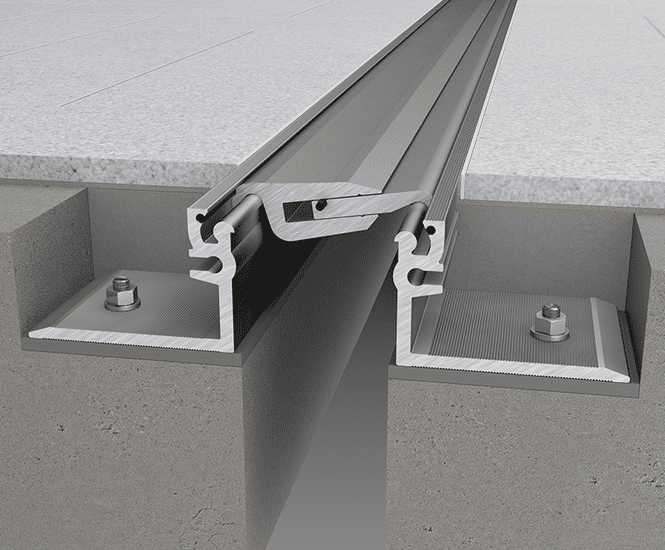

CS Floor Expansion Joint Covers - APF series
The APF Floor Expansion Joint Covers are recess mounted and are highly resistant to rolling loads, distortion, and wear. They can be mixed and matched if required, and there are five frame depths available. Cover plates and exposed frame sections are serrated to provide an anti-slip surface: aluminium sections are mill finished as standard. Wall
The APF Floor Expansion Joint Covers are recess mounted and are highly resistant to rolling loads, distortion, and wear. They can be mixed and matched if required, and there are five frame depths available. Cover plates and exposed frame sections are serrated to provide an anti-slip surface.
Specification
Aluminium sections are mill finished as standard. Wall frames are supplied clear anodised.
Joint Width: up to 110mm
Horizontal: up to +40/-20mm
Vertical: up to ±15mm
Load Capability: 1000kg point load
Heavy Rolling Load Application Examples
Forklifts with full pneumatic tyres of a permissible total weight of 7 tonnes (tyre adhesion area 200 x 200mm)
Trucks with pneumatic tyres of a permissible total weight of 30 tonnes
Vehicles and goods handling trucks with tyres of hard plastics. The permissible load dependent on tyre width is 6.5kg per every mm of tyre width.
