Soffit board type Vented
Material PVC-U
Dimensions (mm) 5m lengths

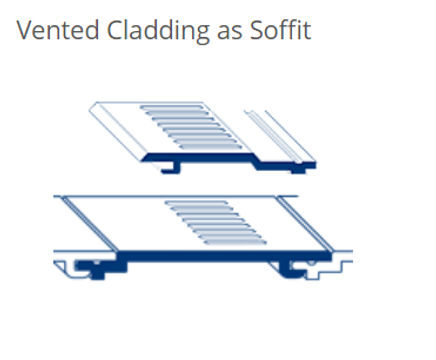

Open V Polo™ and Tee Gee Polo™ vented boards are interlocking cladding planks for the construction of soffits.

Vented Open V Polo™ and Tee Gee Polo™ boards have pre-formed slots for roof void ventilation. The slots provide the equivalent of a 10mm continuous air path to comply with UK Building Regulations for new build and replacement applications.

The boards interlock by a tongued and grooved profile. Open V Polo™ profiles have a symmetrical V groove between planks giving a sharper appearance to the joints, while Tee Gee Polo™ profiles provide an almost flush finish, with a small V groove between profiles.

Several Open V Polo™ and Tee Gee Polo™ planks can be used in wide soffits to provide greater ventilation.

Dimensions

Ventilation slot configuration
Single row: 10mm

Thickness
All Polo™ boards are 9mm thick.

Length
All Polo™ boards are supplied in 5m lengths. Other lengths can be supplied to order.

Width
Open V: 100mm and 150mm.
Tee Gee: 125mm.

Colour range

Open V boards are available in white, mahogany, light oak, rosewood, black for 100mm widths, and in white for 150mm widths.

Tee Gee boards are supplied in white.


Open V Polo™ and Tee Gee Polo™ vented boards are interlocking cladding planks for the construction of soffits.

Vented Open V Polo™ and Tee Gee Polo™ boards have pre-formed slots for roof void ventilation. The slots provide the equivalent of a 10mm continuous air path to comply with UK Building Regulations for new build and replacement applications.

The boards interlock by a tongued and grooved profile. Open V Polo™ profiles have a symmetrical V groove between planks giving a sharper appearance to the joints, while Tee Gee Polo™ profiles provide an almost flush finish, with a small V groove between profiles.

Several Open V Polo™ and Tee Gee Polo™ planks can be used in wide soffits to provide greater ventilation.

Dimensions

Ventilation slot configuration
Single row: 10mm

Thickness
All Polo™ boards are 9mm thick.

Length
All Polo™ boards are supplied in 5m lengths. Other lengths can be supplied to order.

Width
Open V: 100mm and 150mm.
Tee Gee: 125mm.

Colour range

Open V boards are available in white, mahogany, light oak, rosewood, black for 100mm widths, and in white for 150mm widths.

Tee Gee boards are supplied in white.
