System type Gravity
Outlet type Vertical spigot outlets
Features Flange
Pipe diameter (mm) 75mm

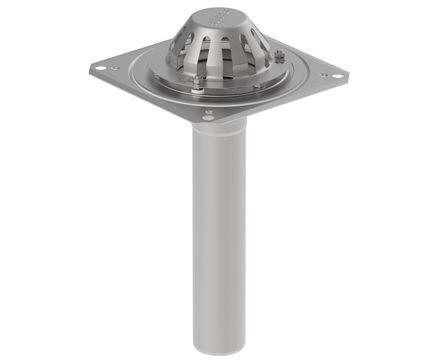

BLÜCHER®'s 75mm roof drain for gravity applications is available with a clamping flange for use with single ply roof membranes membrane. It has a vertical 50mm diameter outlet.

Product information

Weight: 2,71 kg
Material: stainless steel grade AISI 304

The following products can be used with the drain:
Lower part type no. 401.004.XXX or lower part type no. 402.004.XXX
Emergency drain stand pipe type no. 400.100.XXX (for roof with gravity drainage)
Emergency drain stand pipe type no. 400.200.XXX (for roof with vacuum drainage)
Insulation type no. 400.001.XXX
Heating cable type no. 400.000.000

Leaf guard type no. 400.000.001 (standard)
Leaf guard type no. 400.000.002 (option)

Siphonic outlets, and products for bitumen membranes are also available.


BLÜCHER®'s 75mm roof drain for gravity applications is available with a clamping flange for use with single ply roof membranes membrane. It has a vertical 50mm diameter outlet.

Product information

Weight: 2,71 kg
Material: stainless steel grade AISI 304

The following products can be used with the drain:
Lower part type no. 401.004.XXX or lower part type no. 402.004.XXX
Emergency drain stand pipe type no. 400.100.XXX (for roof with gravity drainage)
Emergency drain stand pipe type no. 400.200.XXX (for roof with vacuum drainage)
Insulation type no. 400.001.XXX
Heating cable type no. 400.000.000

Leaf guard type no. 400.000.001 (standard)
Leaf guard type no. 400.000.002 (option)

Siphonic outlets, and products for bitumen membranes are also available.
