System type Siphonic
Outlet type Vertical spigot outlets
Features Flange
Pipe diameter (mm) 75mm

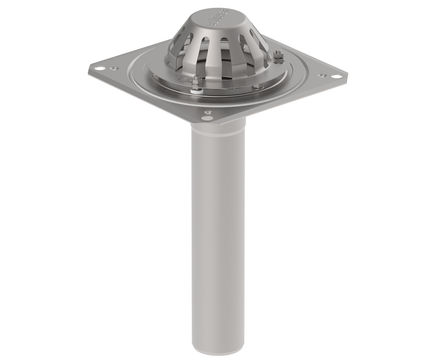

BLÜCHER®'s vertical 75mm roof drain for vacuum/siphonic applications has a clamping flange for installation with single ply membranes.

Product information

Weight: 3.33 kg
Material: stainless steel grade AISI 304

The following products can be used with the drain:
Lower part type no. 401.004.XXX or lower part type no. 402.004.XXX
Insulation type no. 400.001.XXX
Heating cable type no. 400.000.000

75mm gravity outlets are also available, as well as siphonic outlets for use with bitumen roofing.


BLÜCHER®'s vertical 75mm roof drain for vacuum/siphonic applications has a clamping flange for installation with single ply membranes.

Product information

Weight: 3.33 kg
Material: stainless steel grade AISI 304

The following products can be used with the drain:
Lower part type no. 401.004.XXX or lower part type no. 402.004.XXX
Insulation type no. 400.001.XXX
Heating cable type no. 400.000.000

75mm gravity outlets are also available, as well as siphonic outlets for use with bitumen roofing.


Interested in this product?
Call 01937 838000
OR



Downloads
  • Roof drain, siphonic, single-ply membrane, Type no. 402.204.075 Data sheet
    Roof drain, siphonic, single-ply membrane, Type no. 402.204.075 Data sheet
    1pp 965.3KB
    Download
  • Roof drain, siphonic, single-ply membrane, Type no. 402.206.075 Data sheet
    Roof drain, siphonic, single-ply membrane, Type no. 402.206.075 Data sheet
    1pp 783.49KB
    Download
