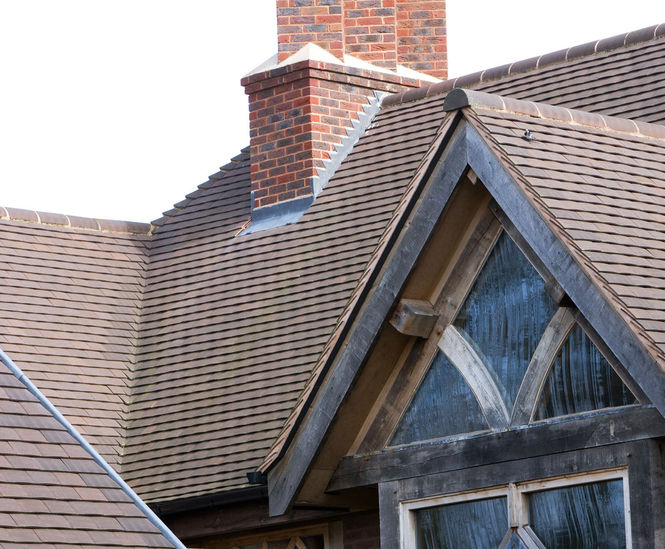

Acme Single Camber Clay Plain tiles are an excellent option for roofing projects; they have strong environmental credentials and there is a wide range of colours and finishes available.

Key features

  • Affordable price making them a real option for any roofing project

  • 11 colours available to match the surrounding area and meet planning requirements.

  • A versatile product with market leading 30° minimum pitch for greater design flexibility

  • A 'Very Good' certification for BES 6001 (all clay plain tiles)

  • A natural product with A+ environmental credentials (BREEAM)

  • Range of complementary fittings and accessories

  • Provides the longevity and quality of using a strong, natural material with the benefits of modern production techniques

Technical data

  • Dimensions: 265 x 165mm

  • Minimum pitch: 30°

  • Maximum pitch: 90°

  • Minimum headlap:
    Roof - 65mm
    Vertical - 37.5mm

  • Maximum gauge:
    Roof - 100mm
    Vertical - 115mm

  • Cover width: 165mm (nominal)

  • Covering capacity:
    Roof - 60 tiles/m² at 100mm gauge
    Vertical - 53 tiles/m² at 115mm gauge

  • Weight:
    Roofs - 64kg/m² (0.63 kN/m²) at 100mm gauge
    Vertical - 56g/m² (0.55 kN/m²) at 115mm gauge

  • Battens required:
    Roof - 10.0 lin.m/m² at 100mm gauge
    Vertical - 8.7 lin.m/m² at 115mm gauge

  • Batten size recommended: 38 x 25mm for rafters / supports not exceeding 600mm centres

  • Tile nails: 38 x 2.65mm

Colours

  • Ashurt

  • Aylesham Mix

  • Autumn Bridle

  • Century

  • Farmhouse Brown Sandfaced

  • Grey Sandfaced

  • Heather Blend

  • Heather Sandfaced

  • Mixed Brindle

  • Red Sandfaced

  • Red Smooth
