System type Siphonic
Outlet type Vertical spigot outlets
Features Flange
Pipe diameter (mm) 75

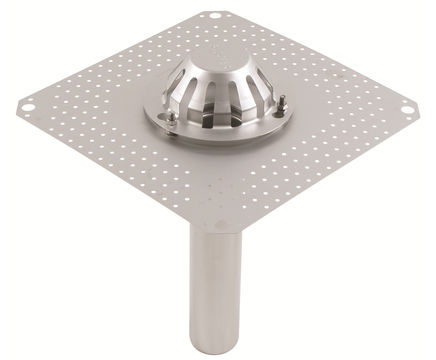

BLÜCHER's roof drain for vacuum/siphonic applications is available with a flange for use with bitumen roof membranes. It is a vertical 75mm diameter outlet.

Weight: 2.2 kg
Material: stainless steel grade AISI 304

The following products can be used with the drain:
Lower part type no. 401.004.XXX or lower part type no. 402.004.XXX
Insulation type no. 400.001.XXX
Heating cable type no. 400.000.000

A version is available with a premounted bitumen collar, for installation under roofing felt.

A 75mm siphonic roof outlet is also available for single-ply roof membranes.


BLÜCHER's roof drain for vacuum/siphonic applications is available with a flange for use with bitumen roof membranes. It is a vertical 75mm diameter outlet.

Weight: 2.2 kg
Material: stainless steel grade AISI 304

The following products can be used with the drain:
Lower part type no. 401.004.XXX or lower part type no. 402.004.XXX
Insulation type no. 400.001.XXX
Heating cable type no. 400.000.000

A version is available with a premounted bitumen collar, for installation under roofing felt.

A 75mm siphonic roof outlet is also available for single-ply roof membranes.
