System type Siphonic
Outlet type Vertical spigot outlets
Features Flange
Pipe diameter (mm) 50

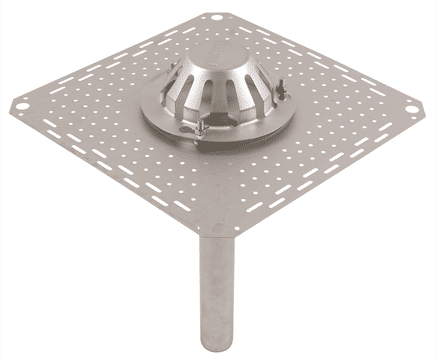

BLÜCHER®'s 50mm roof drain outlet is used for vacuum, and has a flange for bitumen roof membranes. It is a vertical 50mm diameter outlet.

Weight: 1,96 kg.
Material: stainless steel grade AISI 304

The following products can be used with the drain:
Lower part type no. 401.004.XXX or lower part type no. 402.004.XXX
Insulation type no. 400.001.XXX
Heating cable type no. 400.000.000

Separate models are available with a clamping flange for a single-ply membranes.


BLÜCHER®'s 50mm roof drain outlet is used for vacuum, and has a flange for bitumen roof membranes. It is a vertical 50mm diameter outlet.

Weight: 1,96 kg.
Material: stainless steel grade AISI 304

The following products can be used with the drain:
Lower part type no. 401.004.XXX or lower part type no. 402.004.XXX
Insulation type no. 400.001.XXX
Heating cable type no. 400.000.000

Separate models are available with a clamping flange for a single-ply membranes.
