Outlet type Vertical spigot outlets
Features Flange
Pipe diameter (mm) 50

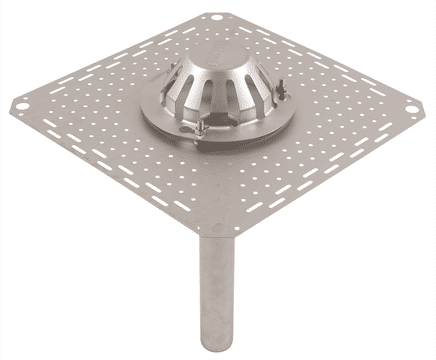

BLÜCHER®'s 401.104.050 roof drain outlet is used for gravity applications, with a flange for bitumen roof sheets. It is a vertical 50mm diameter outlet.

Weight: 1.71 kg.
Material: stainless steel grade AISI 304

Leaf guards:
Leaf guard type no. 400.000.001 (standard)
Leaf guard type no. 400.000.002 (option)

The following products can be used with the drain:

Lower part type no. 401.004.XXX or lower part type no. 402.004.XXX
Emergency drain stand pipe type no. 400.100.XXX (for roof with gravity drainage)
Emergency drain stand pipe type no. 400.200.XXX (for roof with vacuum drainage)
Insulation type no. 400.001.XXX
Heating cable type no. 400.000.000

It is also available with a pre-mounted bitumen collar for installation under roofing felt.


BLÜCHER®'s 401.104.050 roof drain outlet is used for gravity applications, with a flange for bitumen roof sheets. It is a vertical 50mm diameter outlet.

Weight: 1.71 kg.
Material: stainless steel grade AISI 304

Leaf guards:
Leaf guard type no. 400.000.001 (standard)
Leaf guard type no. 400.000.002 (option)

The following products can be used with the drain:

Lower part type no. 401.004.XXX or lower part type no. 402.004.XXX
Emergency drain stand pipe type no. 400.100.XXX (for roof with gravity drainage)
Emergency drain stand pipe type no. 400.200.XXX (for roof with vacuum drainage)
Insulation type no. 400.001.XXX
Heating cable type no. 400.000.000

It is also available with a pre-mounted bitumen collar for installation under roofing felt.
