System type Siphonic
Outlet type Vertical spigot outlets
Pipe diameter (mm) 40

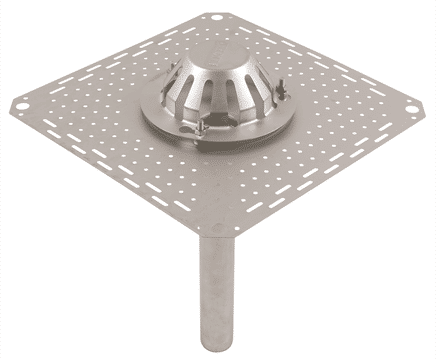

BLÜCHER®'s 40mm vacuum roof drain is used for siphonic applications, and has a clamping flange for use with single ply membranes. It is a vertical 40mm diameter outlet.

Material: stainless steel grade AISI 304 (EN 1.4301)
Weight: 2.90kg (502mm spigot) and 3.09 kg (702mm spigot)

The following products can be used with the drain:

Lower part type no. 401.004.040 or 402.004.040
Leaf guard type no. 400.000.001 or 400.000.002
Insulation type no. 400.001.040
Heating cable type no. 400.000.000
Syphonic plate type no. 400.000.100


BLÜCHER®'s 40mm vacuum roof drain is used for siphonic applications, and has a clamping flange for use with single ply membranes. It is a vertical 40mm diameter outlet.

Material: stainless steel grade AISI 304 (EN 1.4301)
Weight: 2.90kg (502mm spigot) and 3.09 kg (702mm spigot)

The following products can be used with the drain:

Lower part type no. 401.004.040 or 402.004.040
Leaf guard type no. 400.000.001 or 400.000.002
Insulation type no. 400.001.040
Heating cable type no. 400.000.000
Syphonic plate type no. 400.000.100
