TORMAX T2 Series automatic sliding door systems are made for effortless, contactless access in commercial and public buildings. Suitable for new builds or retrofitting, the range includes linear, telescopic, curved, and multi-functional sliding doors, with options for full-glass and thermally separated profiles.

  • Automatic sliding door systems for easy, contactless entry

  • Multiple configurations: linear, telescopic, curved, angular, multi-functional

  • Profile options for single, double, or triple glazing, including thermally separated frames

  • Opening widths from 800 mm to 3000 mm

  • Sealed sliding leaves for improved energy efficiency and safety

  • Compatible with access control, air-lock, and building automation systems

  • Meets CEN and DIN safety standards

Applications

  • Office buildings

  • Shops and convenience stores

  • Hotels and restaurants

  • Hospitals and care homes

  • Apartment blocks

  • Conference centres and exhibition buildings

Dimensions

Opening width single side: 800–2000 mm

Opening width both sides: 1100–3000 mm

Profile facial width: 22–35 mm

Profile base height: 78–85 mm

Profile depth: 20–40 mm

Glass thickness: 6–32 mm

Performance

Safety distance between sliding and fixed leaves: = 8 mm

Materials

Made from aluminium profiles with toughened or laminated safety glass

Options and variations

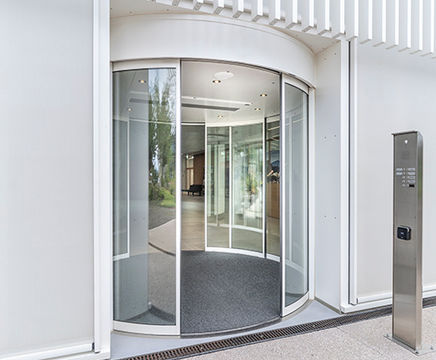

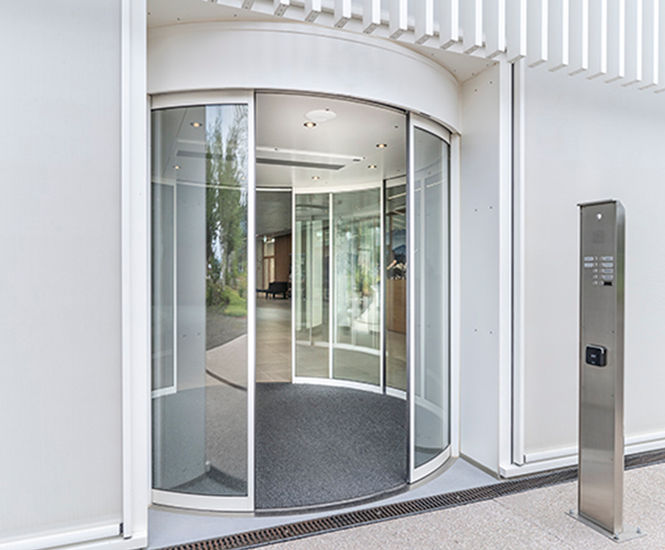

Linear, telescopic, curved, angular, multi-functional doors

Full-glass, insulated, and thermally separated profiles

Single or double sliding leaves

Profile systems

Lightweight profile LR12

Lightweight profile LR 22B

Lightweight profile LR 32THERM

Accreditations

Conforms to CEN and DIN 18650 safety standards
