Ceiling material Gypsum
Format Tile / panel
Surface finish Painted
Colour White
Dimensions (l x w x t) 600x600x12.5mm
Weight (kg/m2) 9.2
Sound absorption (alpha w) 0.65
Sound absorption (NRC) 0.65
Humidity resistance (%) 70%
Light reflectance (%) 72.8%
Fire reaction A2-s1,d0

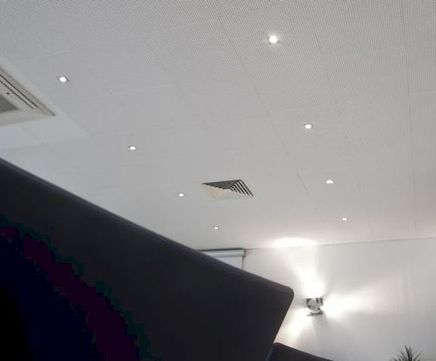

The Unity series of ceiling tiles offers the possibility to create a monolithic acoustic ceiling which is fully demountable. As implied in the name Unity acoustic tiles offer demountable acoustical ceilings with a calm, undisturbed expression. This is possible because acoustic ceiling tiles are perforated to the edge, thereby increasing the sound absorbing area and creating a more uniform and discreet surface. Unity raises the standard of acoustical T-grid ceilings by optimising both the functionality and design of the ceiling tiles.

Range

Unity ceiling tiles are available with perforation designs: Unity 9, Unity 3, Unity 4 and Unity 8|15|20. Each perforation design is available with different edge designs, offering different expressions, applications and functionalities:

  • Edge D+ for a concealed T-grid, ensuring a completely monolithic look
  • Edge E+ for a semi-concealed, recessed T-grid
  • Edge A+ for a visible T-grid; a unique design which lets the T-grid be an integral part of the ceiling surface


The Unity series of ceiling tiles offers the possibility to create a monolithic acoustic ceiling which is fully demountable. As implied in the name Unity acoustic tiles offer demountable acoustical ceilings with a calm, undisturbed expression. This is possible because acoustic ceiling tiles are perforated to the edge, thereby increasing the sound absorbing area and creating a more uniform and discreet surface. Unity raises the standard of acoustical T-grid ceilings by optimising both the functionality and design of the ceiling tiles.

Range

Unity ceiling tiles are available with perforation designs: Unity 9, Unity 3, Unity 4 and Unity 8|15|20. Each perforation design is available with different edge designs, offering different expressions, applications and functionalities:

  • Edge D+ for a concealed T-grid, ensuring a completely monolithic look
  • Edge E+ for a semi-concealed, recessed T-grid
  • Edge A+ for a visible T-grid; a unique design which lets the T-grid be an integral part of the ceiling surface
