TVS RESi FF System - acoustic floating floor with Sylomer isolators
TVS RESi FF System is an acoustic floating floor system made from Sylomer polyurethane isolators, designed to reduce impact and airborne sound transmission in building structures. Suitable for supporting lightweight floors, screeds, and heavy raft foundations, with air gaps from 25mm to 200mm and natural frequencies down to 5Hz: acoustic floating
Click for full image

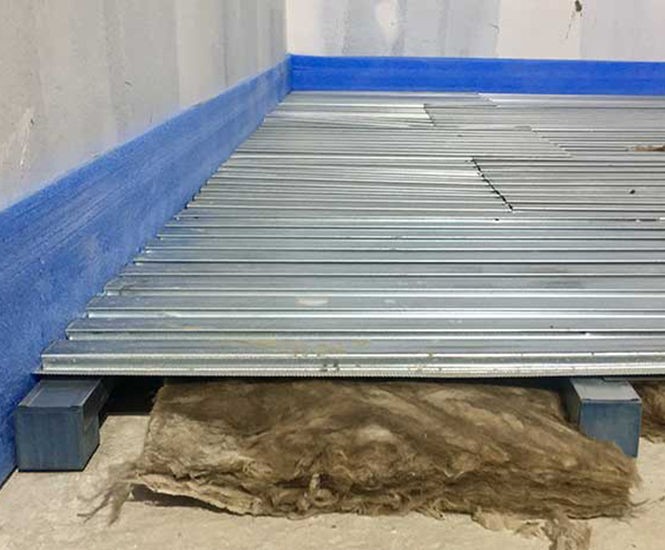

TVS RESi FF System - acoustic floating floor with Sylomer isolators
TVS RESi FF System is an acoustic floating floor system made from Sylomer polyurethane isolators, designed to reduce impact and airborne sound transmission in building structures. Suitable for supporting lightweight floors, screeds, and heavy raft foundations, with air gaps from 25mm to 200mm and natural frequencies down to 5Hz.
Acoustic floating floor system for sound reduction in buildings
Natural frequencies as low as 5Hz for enhanced acoustic performance
Air gaps from 25mm to 200mm for flexible design
Minimal creep and long service life (50+ years)
Excellent shock and impact resistance, suitable for gyms
Resistant to ozone, temperature, oils, grease, and fuel
Custom isolator design to meet project requirements
Applications
Cinema auditoriums
Bowling alleys
Recording studios
Gyms and sports halls
Residential dwellings
Hospitals
Dimensions
Air gap 25mm–200mm
Floor thickness 50mm–500mm
Materials
Sylomer polyurethane isolators
Performance
Natural frequency down to 5Hz
Service life 50+ years
Minimal deflection under high loads
Minimal creep
Shock and impact resistant
Ozone, temperature, oil, grease, and fuel resistant
