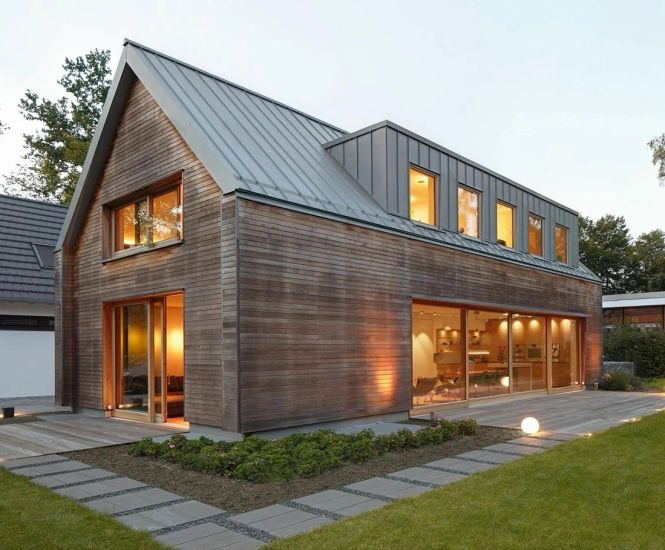

RHEINZINK angled standing seam system is a metal roofing and cladding solution for roof inclinations from 25°, made from zinc panels with a distinctive seam profile. Designed for both new builds and refurbishments, it allows for flexible installation on various roof shapes and surfaces.

  • Metal roofing and cladding system with angled standing seams for visual impact
  • Suitable for roof inclinations from 25°, or 35° in snowy regions
  • Panels can be installed vertically, diagonally, or horizontally
  • Accommodates tapered, concave, and convex surfaces
  • Low material stress with single-side seam closure
  • Extensive range of matching accessories for roof safety and drainage
  • Approved by building inspection authorities

Applications

  • Steep pitched roofs (from 25°)
  • Roofs in regions with heavy snowfall (from 35°)
  • Facade cladding
  • Covering fascias and upstands
  • Refurbishment projects
  • Large and small roof surfaces

Dimensions

Standard panel width 500 mm

Common panel widths 430 mm to 500 mm

International standard panel width 530 mm

Metal thickness 0.7 mm or 0.8 mm

Normal panel length up to 10 m

Maximum panel length 16 m (special cases, up to 30° roof inclination)

Seam height approx. 25 mm

Seam width approx. 12 mm

Coil width 575 mm or 600 mm

Deliverable lengths up to 7 m

Materials

Made from zinc

Installation

Panels produced using roll formers (up to 16 m) or bending brakes (up to 4 m)

Single-side seam closure by machine or hand

Simple fastening system

Accreditations

System approved by building inspection authorities
