Type Grating screen panels
Material Galvanised steel
Panel sizes (h x w) Max. 4000x1863mm
Aperture size (h x w) 62x132mm
Bar / wire / louvre size 25x3mm and 25x4mm




Stereo is a robust, open-mesh electrofused steel gratings with a rectangular aperture.

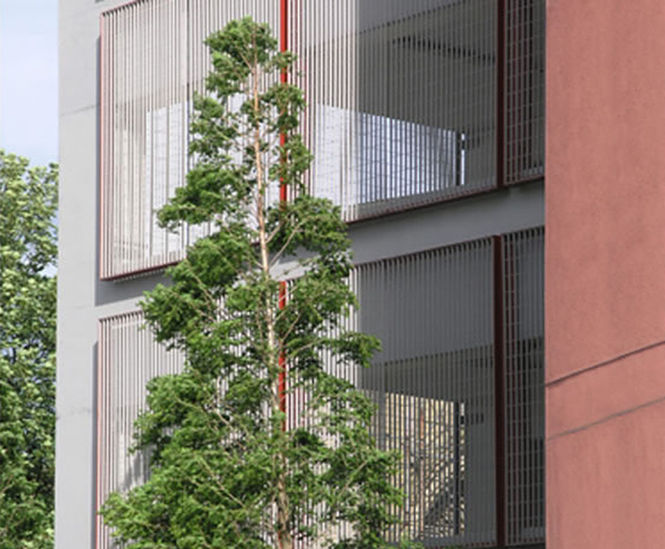

It is a multi-purpose grating with a variety of applications, including cladding for buildings that require through-ventilation.

Mesh size: 62x132mm.
Standard or custom-sized panels: max (hxw): 4000x1863mm.

Stereo is available with two alternative weights of flat bar:

  • Stereo-3 with a 25x3mm flat bar
  • Stereo-4 with a 25x4mm flat bar

Finish: panels are hot-dip galvanised before optional polyester powder coating in any RAL colour.


Stereo is a robust, open-mesh electrofused steel gratings with a rectangular aperture.

It is a multi-purpose grating with a variety of applications, including cladding for buildings that require through-ventilation.

Mesh size: 62x132mm.
Standard or custom-sized panels: max (hxw): 4000x1863mm.

Stereo is available with two alternative weights of flat bar:

  • Stereo-3 with a 25x3mm flat bar
  • Stereo-4 with a 25x4mm flat bar

Finish: panels are hot-dip galvanised before optional polyester powder coating in any RAL colour.
