Ceiling material Gypsum
Format Tile / panel
Surface finish Quadril, tangent, globe or micro perforations, or non-perforated
Colour White - RAL 9003
Dimensions (l x w x t) 600x600x9.5, 1200x600x9.5, 600x600x12.5, 1200x600x12.5, 625x625x12.5, 1250x625x12.5mm
Weight (kg/m2) 7.4-8.1
Sound absorption (alpha w) 0.60-0.75
Sound absorption (NRC) 0.60-0.70
Humidity resistance (%) 90
Light reflectance (%) 70.9-82.6
Fire reaction Full-perforated: A2-s1,d0; Part-, non-perforated: B-s1,d0

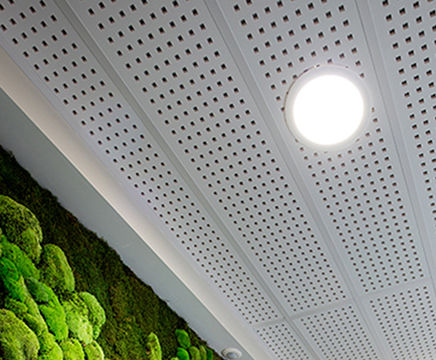

Plaza is a straightforward suspended ceiling tile that provides opportunities for creative design using contrast between tile and grid. It is ideal for use with a narrow grid system

Plaza is fast and easy to mount and adapt, as all edges remain hidden above the grid system. It is often used as a frieze/margin panel for Danolines Markant and Linear grid systems.

Specifications:

  • White painted gypsum tile.
  • Perforations: 3x3mm square holes, 12x12mm square holes, 6mm diameter round holes, 14x4mm oval holes or unperforated
  • Dimensions: 600x600x9.5mm, for exposed 15 or 24mm suspension systems.


Plaza is a straightforward suspended ceiling tile that provides opportunities for creative design using contrast between tile and grid. It is ideal for use with a narrow grid system

Plaza is fast and easy to mount and adapt, as all edges remain hidden above the grid system. It is often used as a frieze/margin panel for Danolines Markant and Linear grid systems.

Specifications:

  • White painted gypsum tile.
  • Perforations: 3x3mm square holes, 12x12mm square holes, 6mm diameter round holes, 14x4mm oval holes or unperforated
  • Dimensions: 600x600x9.5mm, for exposed 15 or 24mm suspension systems.
