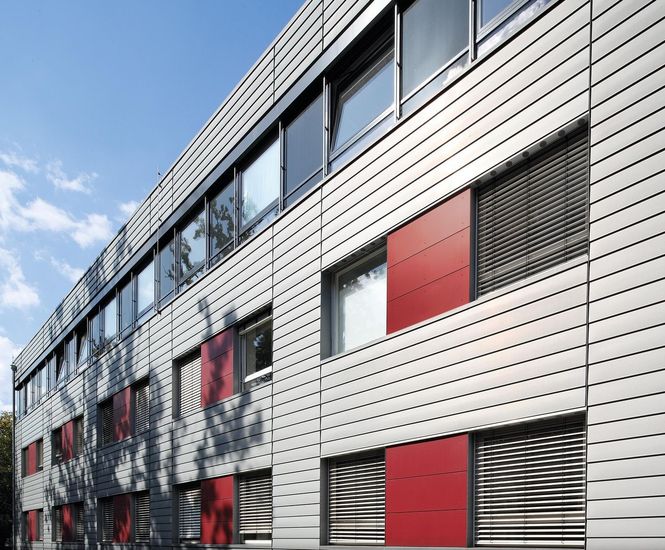

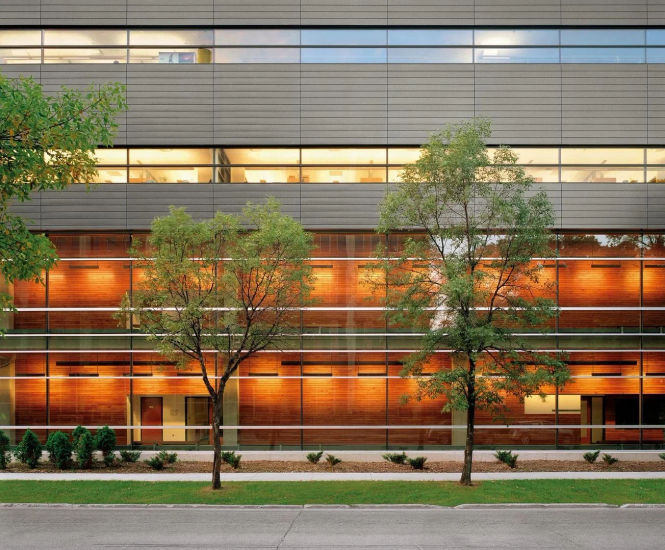

RHEINZINK ST 40 shiplap panels are metal facade cladding panels designed for horizontal installation, creating a scale-like appearance with concealed fixings. Made from zinc, these panels suit large or small facades and allow for flexible construction widths and panel lengths, supporting individual architectural designs.

  • Metal shiplap panels for horizontal facade cladding with a distinctive scale-like look
  • Concealed attachment for a clean, uninterrupted surface
  • Variable construction widths from 200 mm to 333 mm for design flexibility
  • Maximum panel length of 4000 mm enables efficient coverage of large areas
  • No shadow gap, producing clear lines and striking shading effects
  • Panels can be fully or partially perforated for design or ventilation
  • Quick and economical installation process

Applications

  • Commercial building facades
  • Office building exteriors
  • Public buildings with modern architectural requirements
  • Large-scale facade projects
  • Projects seeking a distinctive, scale-like visual effect

Dimensions

Construction width: 200 mm–333 mm

Panel length: up to 4000 mm

Installation depth: 25 mm (top), 40 mm (bottom)

Metal thickness: 1.0 mm or 1.2 mm (1.2 mm recommended for widths = 250 mm)

Installation

Horizontal installation only, assembled from bottom to top with concealed fixings using the upper lug

End plates recommended for widths from 250 mm upwards to maintain surface quality and prevent side gaps

Options and variations

Panel faces can be fully or partially perforated for design or ventilation
