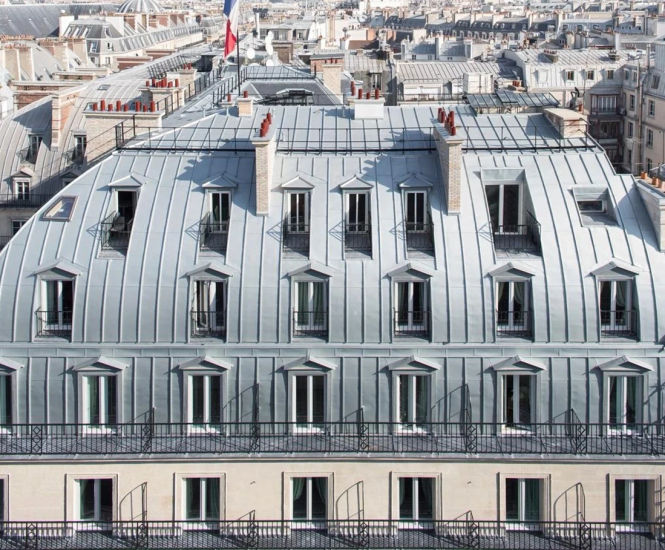

RHEINZINK click roll cap roofing is a segmented metal roof system made from zinc for roof inclinations from 3°, designed for fast, economical installation on large or small surfaces using panels up to 25 m long and matching system components.

  • Segmented metal roof system for low-pitch roofs
  • Panels up to 25 m long can be installed rapidly
  • Prefabricated or site-formed panels using mobile roll formers
  • Rainproof once installed, suitable for replacing old roof elements
  • Easy calculation and planning for architects and specifiers
  • Reduced need for tools and machines due to matching components
  • Panels can be overlapped and do not require seam sealing

Applications

  • Low-pitch roofing from 3° inclination
  • Large commercial or public building roofs
  • Replacement of traditional roll roofing
  • Cost-effective new build or refurbishment projects
  • Non-ventilated roof structures

Dimensions

Coil width 430–625 mm

Panel width 305–500 mm

Centre distance 385–585 mm

Metal thickness 0.7 mm or 0.8 mm

Panel length up to 25 m

Standard panel width approx. 475 mm (centre distance 515 mm)

Roll width approx. 6.0 cm

Roll height approx. 5.3 cm

Upright side section height 47 mm

Materials

Made from zinc

Click roll fastener made from galvanised steel

Installation

Panels attached with RHEINZINK click roll fastener

Click roll cap clipped into place, flared at bottom for overlap

No seam sealing required

Panels can be prefabricated or formed on site

Options and variations

Panel width can be limited to 445 mm (coil width 570 mm, centre distance 485 mm) for mono pitch roofs with overhangs
