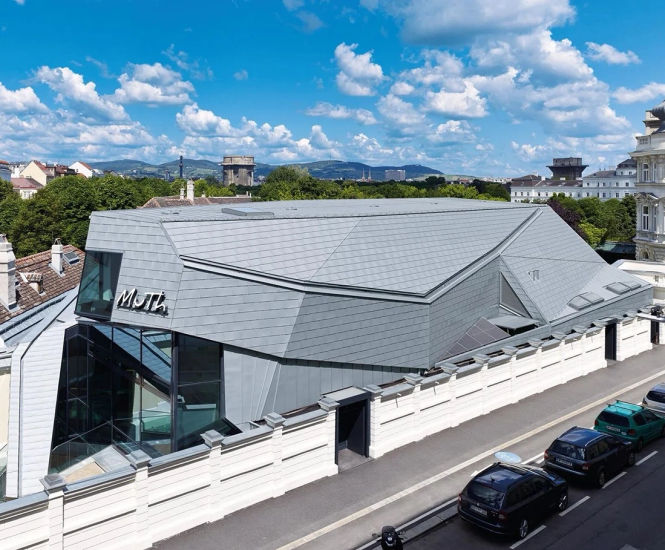

RHEINZINK flat lock tiles are made from high-quality titanium zinc and designed for large-area facade coverings. Suitable for gradients from 10°, these tiles are custom-produced in various shapes and sizes, allowing flexible design for new builds and refurbishments. System technology enables quick installation and adaptation to complex building sections.

  • Flat lock tiles for facade surfaces, made from titanium zinc

  • Custom sizes and geometric forms, including concave and convex options

  • Quick, simple installation with refined system technology

  • Consistent appearance for uniform architectural design

Applications

  • Facade cladding for new construction

  • Refurbishment of existing buildings

  • Architectural projects requiring custom tile shapes

Dimensions

Construction width up to 600 mm

Construction length up to 3000 mm (optimum = 2000 mm)

Metal thicknesses: 0.7 mm, 0.8 mm, 1.0 mm

Materials

High-quality titanium zinc

Options and variations

Concave and convex rounded tiles

Trapezoidal and hexagonal geometric forms

Installation

Quick assembly with system technology

Ventilated roof structure recommended

Diffusion open membrane as rainproof layer
