RHEINZINK double standing seam system is a long-lasting roof covering made from zinc, designed for both traditional and modern buildings with roof inclinations from 3°. Suitable for new builds and refurbishments, it adapts to complex shapes and includes matching roof drainage products.

  • Roof covering system for inclinations from 3°, adaptable to various building shapes
  • Panels up to 7 m standard length, with options for up to 16 m on large roofs
  • Rainproof seams protect against wind and weather
  • Installation possible by hand or with profiling machines
  • System approved by building inspection authorities
  • Matching roof drainage products available

Applications

  • Residential and commercial roofs
  • New building projects
  • Refurbishment of existing roofs

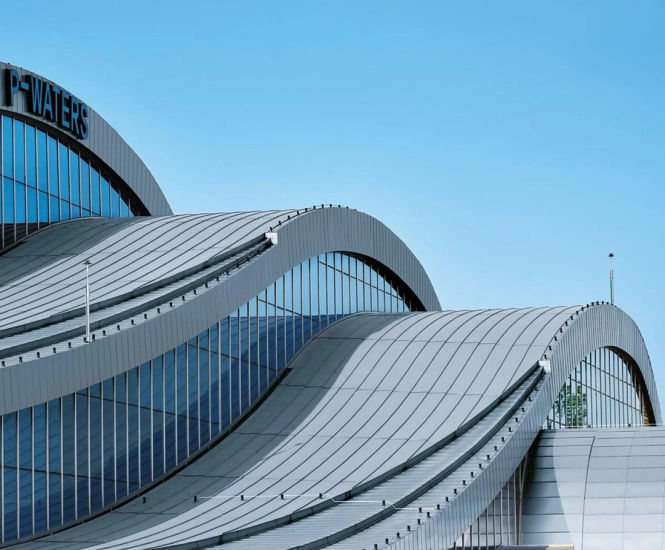

  • Architectural projects with complex or curved surfaces
  • Low-pitch roofs from 3° inclination

Dimensions

Standard panel width approx. 500 mm

Panel length up to 7 m standard, up to 16 m possible

Materials

Made from zinc

Performance

Rainproof seams

System approved by building inspection authorities

Installation

Fixed and sliding stainless steel clips with corrosion-protected screws

Seam sealant tape required for 3°–7° inclinations and areas prone to ice dams

Panels can be installed by hand or with machines

Options and variations

Panels for tapered, concave, or convex surfaces

Rental machines for on-site panel processing
