Woodsorba® - impact resistant wood-veneered acoustic panels

Product name

WOODSORBA®

Format

Panels

Application

Wall only

Main material

Medium density fibreboard

Fire rating

BS 476-7, Class 0
BS 476-7, Class 1

Dimensions (l x w x d)

600, 800, 1200, 2400mm length; 197, 293, 581mm width; 18mm thick

Woodsorba®, wood veneered acoustic panels combine sound absorption with a durable, naturally attractive timber finish. Impact resistant and widely used in sports halls as well as schools, offices and commercial interiors. Available in slatted or round-holed face patterns with real wood veneer, melamine or painted finishes. Meets BB93 and Sports England reverberation time requirements.

Applications

Schools Offices and commercial buildings

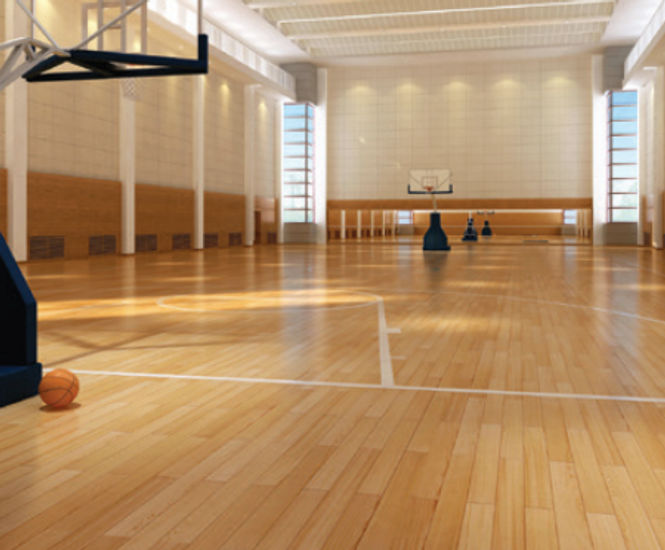

Sports and recreation halls
Lecture theatres and auditoriums
Reception areas
Factories and workshops

Panel Versions

	Version A	Version B	Version C	Version D
Face Pattern	Slatted 32mm	Slatted 16mm	Round hole 6mm	Round hole 3mm
Lengths (mm)	2400 / 1200	2400 / 1200	2400 / 1200	2400 / 1200
Widths (mm)	197 / 293 / 517	197 / 293 / 517	197 / 293 / 517	197 / 293 / 517
Weight (kg/m²)	10	10	10	10
NRC no backing	0.69 (Class C)	0.66 (Class C)	0.70 (Class C)	0.50 (Class D)
NRC with backing	0.75 (Class B)	0.68 (Class C)	0.88 (Class B)	0.70 (Class C)
Fire Rating	BS476 Class 3	BS476 Class 3	BS476 Class 3	BS476 Class 3

Acoustic Performance

	125 Hz	250 Hz	500 Hz	1000 Hz	2000 Hz	4000 Hz	NRC	Class
Ver. A no backing	0.15	0.62	0.90	0.78	0.48	0.52	0.69	C
Ver. A with backing	0.34	0.82	0.90	0.72	0.54	0.58	0.75	B
Ver. B no backing	0.12	0.32	0.68	0.95	0.60	0.68	0.66	C
Ver. B with backing	0.40	0.50	0.85	0.95	0.70	0.70	0.68	C
Ver. C no backing	0.20	0.44	0.93	0.92	0.55	0.55	0.70	C
Ver. C with backing	0.40	0.80	1.50	0.70	0.50	0.25	0.88	B
Ver. D no backing	0.20	0.52	1.04	0.54	0.28	0.20	0.50	D
Ver. D with backing	0.30	0.88	1.00	1.60	0.35	0.27	0.70	C
