Type Fixed frame

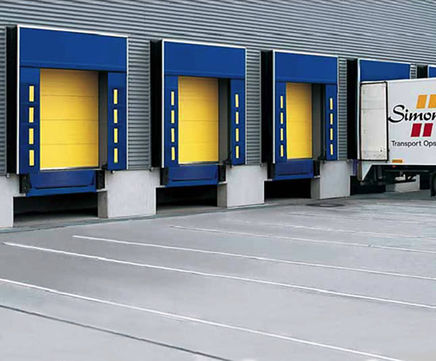

Hörmann DT dock shelters with scissor arms are designed for high duty. They offer long-term durability for locations where loading takes place around the clock. The flaps are made in high-frequency welded material in polyester with special fabric inserts. They are PVC-coated on both sides and have galvanised steel leaf springs, which makes them particularly suitable for heavy duty applications.

DT dock shelters give minimal maintenance costs. If collision damage should be sustained, a leaf spring can be quickly and simply replaced without having to replace the entire side flap.

The heavy-duty side flaps and head flap have galvanised steel leaf springs under great tension, approximately 2mm thick. The cladding at the top and sides has a substrate of polyester threads, coated on both sides with PVC.

Surface weight: approximately 2000g/m2.

Side flaps: 650mm wide.
Head flap: available in 900, 1000, 1200 or 1350mm heights.


Hörmann DT dock shelters with scissor arms are designed for high duty. They offer long-term durability for locations where loading takes place around the clock. The flaps are made in high-frequency welded material in polyester with special fabric inserts. They are PVC-coated on both sides and have galvanised steel leaf springs, which makes them particularly suitable for heavy duty applications.

DT dock shelters give minimal maintenance costs. If collision damage should be sustained, a leaf spring can be quickly and simply replaced without having to replace the entire side flap.

The heavy-duty side flaps and head flap have galvanised steel leaf springs under great tension, approximately 2mm thick. The cladding at the top and sides has a substrate of polyester threads, coated on both sides with PVC.

Surface weight: approximately 2000g/m2.

Side flaps: 650mm wide.
Head flap: available in 900, 1000, 1200 or 1350mm heights.
