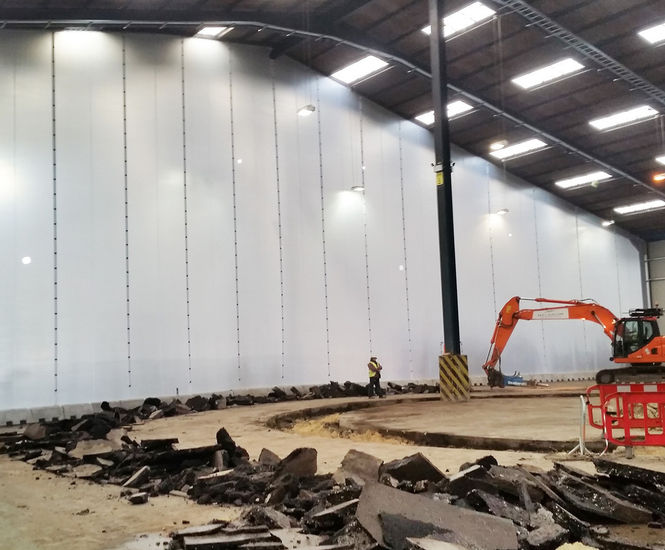

Temporary floor-to-ceiling dust containment screen made from polyester reinforced fire-retardant fabric with PVC or PU coatings. Designed for use during construction, installation, and extension works in live manufacturing, production and warehouse environments.

Features and benefits

  • Over 99% dust containment with v-overlap system and tight seals

  • Quick, clean installation with minimal floor space required

  • Adaptable to any building height, width or profile

  • Antibacterial and fire-rated material options

  • Relocatable and extendable for phased works

  • Suitable for high wind-load areas with wind-load calculations

  • Sound reduction and thermal resistance properties

  • Dust containment during construction or flooring works

  • Screening off production lines in live manufacturing, including food facilities

  • Enclosures for roof removal or temperature control

  • Phased openings in large warehouses

  • Weather protection for external construction

  • Temporary aisle containment for data centre testing

Physical attributes

Made to suit any height and width of building, subject to survey. Material weight ranges from 175 to 840gsm.

Materials

Main product is polyester reinforced fire-retardant fabric with PVC coatings; non-combustible woven glass fabric with PU coating also available.

Performance

  • Tensile strength between 800N and 3400N per 50mm

  • Tear strength between 250N and 850N

  • Fire ratings include BS 5867:2008 Part 2 Type A & B, Warrington Certifire TS62 & TS63, EN13501-1 A2s1d0, EN13501-1 Bs1d0, EN13501-1 Cs2d0

  • Operating temperature from -40°C to +70°C

  • Sound reduction between 11dB and 13dB

  • Thermal resistance between 5.68 and 5.40 W/m²K

Installation

Suspended from existing building structure, no additional supporting framework required. Can be installed on an angle and around existing equipment or tight gaps.

Manufacture

Manufactured and quality controlled in the UK.
