Type Corner beads
Material PVC-U
Product accreditation BBA certified
BS EN 13914-1:2005
Fixing Direct to substrate
Glued
Mechanically fixed
Suitability External walls
Internal walls
Bead dimensions (mm) 4mm visible arris; 40, 60, 71mm wing
Render depth (mm) 10-22

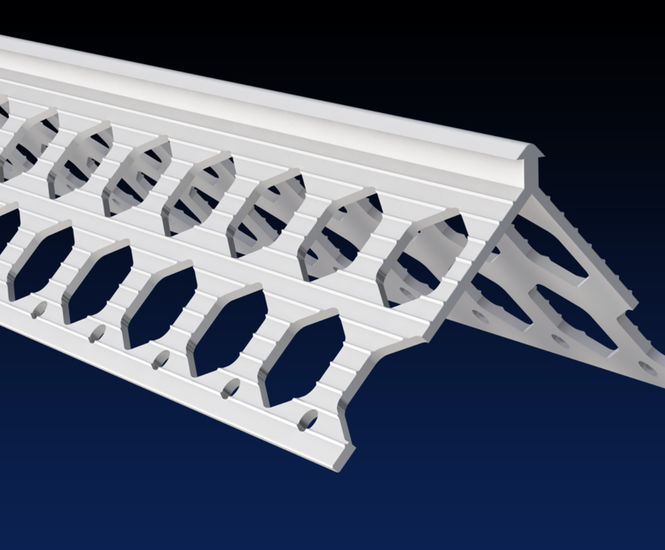

Renderplas 10, 15 and 20mm corner and Powerbeads are manufactured to ISO 9001:2000 from exterior grade impact resistant UV stable unplasticised PVCu.They are designed for function and speed on external and internal rendering and plastering applications.

Applications

Suitable for use on standard rendered and plastered corners and reveals to produce a straight edge and provide protection against impact.

Colour and appearance

All corner beads are stocked in White & Ivory.

10 further colours available for CB10, CB15 and CBX15.

Performance

  • Comply with BS EN 13914-1&2:2005
  • BBA certified
  • Class 1Y fire rated
  • REACH compliant
  • Dissipate shock waves
  • Reduce spalling and impact damage
  • Cleaned or painted in same way as render
  • Outlast metal
  • More cost effective than stainless steel
  • Not affected by weather - should be specified in all regions of high moisture or high salt
  • Guaranteed not to stain or corrode
  • Guaranteed to be fit for purpose for lifetime of the render and at least 25 years

Installation

Supplied in 2.5m or 3.0m lengths and in packs of 25 or 6.

PVCu beading is fast and easy to cut to length with tin snips or a fine toothed hacksaw and is safer to handle than cut metal.

Fixing is no different from steel beads and standard industry practice can be followed.

Environment

  • Locally manufactured
  • High recycled content
  • Low Ecopoint score of 0.004/kg installed
  • Fully recyclable
  • Ecologically benign; non-hazardous in water; non-hazardous if ingested; does not release substances into the atmosphere

Product range suitable for standard render

• CB10
Description: 10mm corner bead
Render or plaster depth: 10-12mm
Colours: 12 colours

• CBX10
Description: 10mm corner Powerbead
Render or plaster depth: 10-15mm
Colours: White; Ivory

• CB15
Description: 15mm corner bead
Render or plaster depth: 15-17mm
Colours: 12 colours

• CBX15
Description: 15mm corner Powerbead
Render or plaster depth: 13-15mm
Colours: 12 colours

• CB20
Description: 20mm corner bead
Render or plaster depth: 18-22mm
Colours: White; Ivory


Renderplas 10, 15 and 20mm corner and Powerbeads are manufactured to ISO 9001:2000 from exterior grade impact resistant UV stable unplasticised PVCu.They are designed for function and speed on external and internal rendering and plastering applications.

Applications

Suitable for use on standard rendered and plastered corners and reveals to produce a straight edge and provide protection against impact.

Colour and appearance

All corner beads are stocked in White & Ivory.

10 further colours available for CB10, CB15 and CBX15.

Performance

  • Comply with BS EN 13914-1&2:2005
  • BBA certified
  • Class 1Y fire rated
  • REACH compliant
  • Dissipate shock waves
  • Reduce spalling and impact damage
  • Cleaned or painted in same way as render
  • Outlast metal
  • More cost effective than stainless steel
  • Not affected by weather - should be specified in all regions of high moisture or high salt
  • Guaranteed not to stain or corrode
  • Guaranteed to be fit for purpose for lifetime of the render and at least 25 years

Installation

Supplied in 2.5m or 3.0m lengths and in packs of 25 or 6.

PVCu beading is fast and easy to cut to length with tin snips or a fine toothed hacksaw and is safer to handle than cut metal.

Fixing is no different from steel beads and standard industry practice can be followed.

Environment

  • Locally manufactured
  • High recycled content
  • Low Ecopoint score of 0.004/kg installed
  • Fully recyclable
  • Ecologically benign; non-hazardous in water; non-hazardous if ingested; does not release substances into the atmosphere

Product range suitable for standard render

• CB10
Description: 10mm corner bead
Render or plaster depth: 10-12mm
Colours: 12 colours

• CBX10
Description: 10mm corner Powerbead
Render or plaster depth: 10-15mm
Colours: White; Ivory

• CB15
Description: 15mm corner bead
Render or plaster depth: 15-17mm
Colours: 12 colours

• CBX15
Description: 15mm corner Powerbead
Render or plaster depth: 13-15mm
Colours: 12 colours

• CB20
Description: 20mm corner bead
Render or plaster depth: 18-22mm
Colours: White; Ivory
