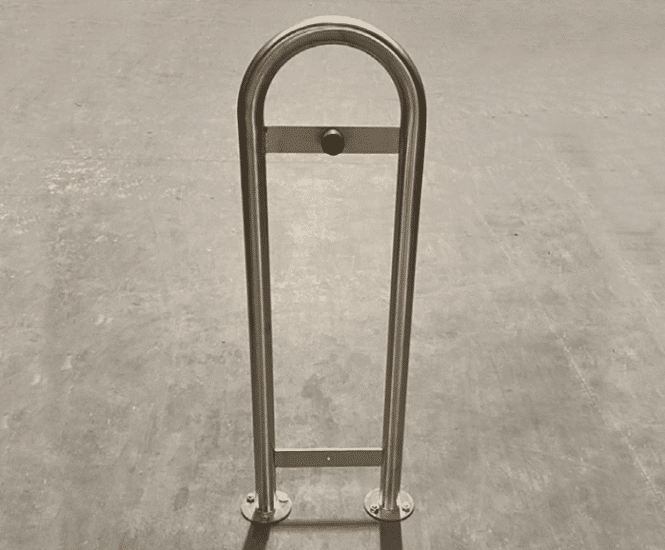

Type 2 Door Stop is a mild steel tube door guard with a central rubber stopper to prevent doors from damaging walls or frames. Designed for both internal and external use in commercial and industrial settings, it is galvanised for durability and available with ragged or flanged bases for different installation needs.

  • Steel tube door stop with integrated rubber stopper
  • Suitable for indoor and outdoor environments
  • Choice of ragged (for casting) or flanged (for bolting down) base
  • Galvanised as standard for long service life
  • Colour coated and stainless steel finishes on request
  • Central rubber stopper absorbs door impact

Applications

  • Commercial buildings
  • Industrial sites
  • Warehouses
  • Public facilities
  • Car parks
  • Loading bays

Dimensions

1100mm above ground

350mm wide

48mm diameter tube

3mm wall thickness (galvanised)

2mm wall thickness (stainless)

300mm below ground (ragged only)

Materials

Mild steel (galvanised)

Stainless steel (on request)

Finish

Galvanised as standard

Colour coated and stainless steel finishes available on request

Options and variations

Ragged for casting

Flanged for bolting down

Installation

Ragged base for casting into concrete

Flanged base for bolting down
