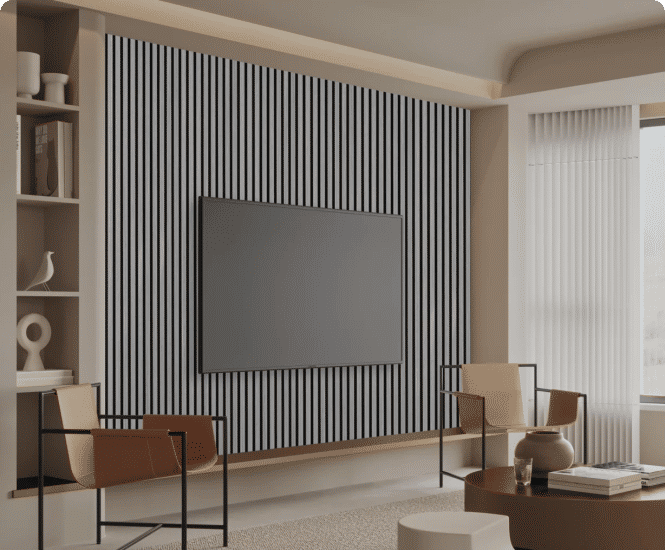

Slatsorba® acoustic wall and ceiling panels are designed to reduce echo and reverberation in interior spaces. Made from a 9mm polyester PET base with 25mm wide × 13mm deep MDF timber slats and engineered wood veneer, panels combine effective sound absorption with a natural wood aesthetic. The PET base is manufactured from 60% recycled plastic bottles, and all wood veneers are sustainably sourced.

Key Features

  • Acoustic panels for echo and reverberation reduction in interior spaces

  • 9mm PET base with MDF timber slats and engineered wood veneer finish

  • Overall panel thickness 22mm; panel size 2400 × 600mm

  • NRC 0.58 (Class D) direct fix; NRC 0.94 (Class A) with 40mm air gap

  • Suitable for wall and ceiling installation

  • Available in five standard timber veneer finishes

  • Panels can be cut for sockets, switches and apertures

  • Meets Building Bulletin 93 (BB93) reverberation time requirements when specified appropriately

  • Weight: 9 kg/m²

Applications

  • Offices

  • Schools

  • Classrooms

  • Theatres

  • Auditoriums

  • Worshops

Specification

SLATSORBA®

Panel Size (mm)

2400 × 600

Overall Thickness (mm)

22 (9mm PET base + 13mm slat)

Slat Dimensions

25mm wide × 13mm deep

Slat Spacing

15mm gaps

Weight (kg/m²)

9

Construction

9mm polyester PET base panel + MDF timber slats with engineered wood veneer finish

Recycled Content

PET base made from 60% recycled plastic bottles

NRC - Direct Fix

0.58 (Class D)

NRC - 40mm Air Gap

0.94 (Class A)

Fire Rating

PET backing: EN 13501-1 Class B-s1, d0. MDF slats: non fire-rated as standard (Class C-s1, d0 on request)

Finishes

Light Oak, Smoked Oak, Oiled Oak, Walnut, Grey Oak (further colours on request)

Applications

Walls and ceilings

Sound absorption

125 Hz

250 Hz

500 Hz

1000 Hz

2000 Hz

4000 Hz

NRC

Class

Direct Fix

0.05

0.10

0.25

0.65

1.00

0.90

0.58

D

40mm Air Gap

0.25

0.80

1.00

1.00

1.00

0.90

0.94

A

Fire Performance

Polyester backing panel tested to EN 13501-1 Class B-s1, d0. MDF timber slats are non fire-rated as standard; Class C-s1, d0 rated slats available on request.

Materials

PET base manufactured from 60% recycled plastic bottles.

MDF timber slats finished with engineered wood veneer.

All wood veneers are sustainably sourced.

Finish

Five standard timber veneer finishes:

Light Oak

Smoked Oak

Oiled Oak

Walnut

Grey Oak.

Colours and PET backing colours available on request.

Installation

Direct fixing with 35mm screws through the polyester base (16 screws per panel), or batten fixing onto 40mm × 30mm timber battens at 600mm centres.

Maintenance

Vacuum clean periodically. Light dirt marks can be removed with a damp cloth. Cleaning agents must be non-abrasive and suitable for use with wood veneers.
