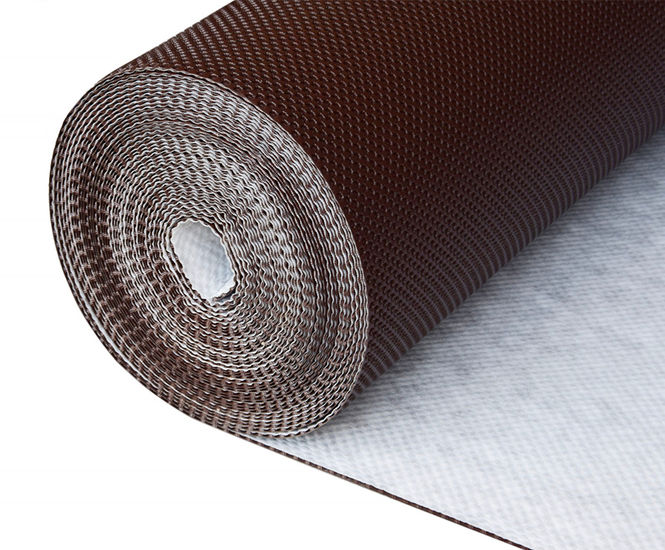

MS Drain serves as a drainage layer with fused-on geotextile.

Sheet features a high compressive strength of c. 500kN/m² as well as more than 8,900 dimples/m².

Featuring a contact area four times greater than that of conventional dimpled sheets allowing for greater distribution of pressure on the waterproofing.

Fused-on hydrophilic geotextile ensures that water drains off safely and reliably.

Service life of Delta MS Drain has been measured at 50 years.

Technical Specification

  • Conforms to EN 13252

  • Product Code: DMS 233

  • Material: High-Desinty Polyethylene

  • Roll Size: 30 m x 2 m

  • Dimple Height: 4mm approx

  • Air Gap: 2,6 l/m2

  • Characteristics Opening Size: 0.06mm

  • Drainage Capacity: 0.6 l/s · m2

  • Compressive Strength: 500 kN/m2

  • CE Comformity: DIN EN 13252

  • Acts as a protection layer over Type A Primary Waterproofing Systems

  • Compressive strength 500 kN/m2

  • Service Temperature Range -30 to + 80 (degrees C)

  • Offers high resistance to compression thanks to its special dimple design

  • Features outstanding drainage capacity

  • Drainage and Protection layer

  • Is rot-proof, impact resistant and non-deformable

Delta MS Drain is the perfect solution for waterproofing:

  • Buried roofs

  • Retaining walls

  • Tunnels

  • Civil Engineering builds

  • Podium Decks
