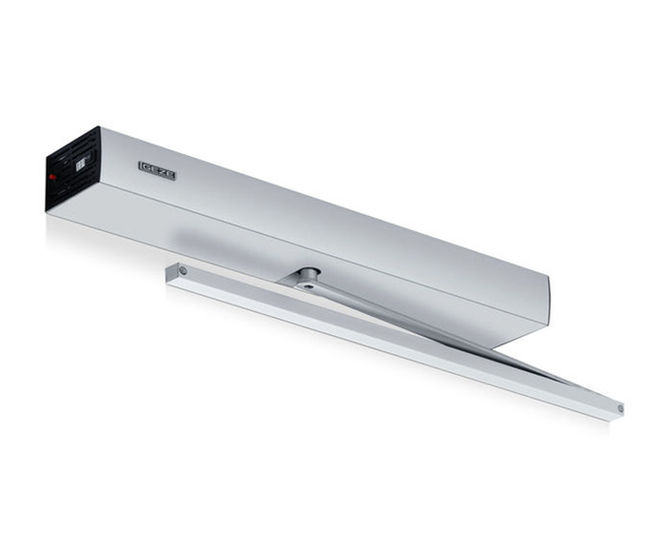

Slimdrive EMD-F is an award-winning electromechanical swing door drive for single-leaf fire and smoke protection doors.

  • Closing force with variable adjustment of EN 4-6

  • Opening and closing speed can be individually adjusted

  • Mechanical latching action when operated without current, and electrical latching action in regular operation, which accelerates the door shortly before the closed position

  • Low-energy function opens and closes the door with reduced speed, fulfilling the highest safety demands

  • Servo function for motorized support when manually opening the door

  • Vestibule function controls the opening and closing of two consecutive doors (interlocking door system)

  • Obstacle detection detects an object through contact and stops the opening or closing process

  • Automatic reversing detects an obstacle and returns to the opening position

  • Push & Go function triggers the automatic drive following light manual pressure on the door leaf

  • Drive can be used with roller guide rail or link arm

Applications

  • Fire and smoke protection doors

  • Single-action, single-leaf, right and left closing doors

  • Single-action doors up to 1400mm leaf width or 230kg weight

  • Interior and exterior doors with high access frequency

  • Door leaf installation and transom installation

Technical specification

Height

70mm

Depth

121mm

Leaf weight (max.) 1-leaf

230kg

Distance centre door hinge-drive axis (min.-max.) 2-leaf

1500-2800mm

Leaf width (min.-max.)

750-1400mm

Reveal depth (max.)

400mm

Door overlap (max.)

30mm

Drive type

Electromechanical

Opening angle (max.)

130°

Spring pre-load

EN4-EN6

DIN left

Yes

DIN right

Yes

Transom installation opposite hinge side with link arm

Yes

Transom installation opposite hinge side with roller guide rail

Yes

Transom installation hinge side with roller guide rail

Yes

Door leaf installation hinge side with roller guide rail

Yes

Mechanical latching action

Yes

Electrical latching action

Yes

Electrical closing sequence control

Yes

Disconnection from mains

Main switch in the drive

Activation delay (max.)

20s

Operating voltage

230V

Power rating

230W

Power supply for external consumers (24 V DC)

1000mA

Service temperature

-15-50°C

IP rating

IP20

Mode of operation

Off, Automatic, Permanently open, Shop closing, Night

Type of function

Fully automatic

Automatic function

Yes

Low-energy function

Yes

Servo function

Yes

Key function

Yes

Vestibule function

Yes

Obstacle detection

Yes

Automatic reversing

Yes

Push & Go

Adjustable

Operation

Programme switch DPS, Programme switch integrated in the drive

Parameter setting

GEZEconnects (PC + Bluetooth), Service terminal ST 220

Standard conformity

DIN 18263-4, DIN 18650, EN 16005

Suitability for fire protection doors

Yes

Awards

Fire Door Product of the Year - National Fenestration Awards 2025
