Corden EPS Evolution Bond – Gas and Hydrocarbon Barrier is a multilayer, Polyethylene membrane with a bonded textile for pre-applied applications; specifically designed and manufactured to perform as a Methane, Carbon Dioxide, Radon, Ground Gas, VOC, air & Moisture, and Hydrocarbon protection system.

Corden EPS Evolution Bond complies with the latest codes of practice as published by BRE, CIRIA (C748) and BSI (BS 8485:2015 and BS8102:2009). Suitable for use as Ground Gas/Hydrocarbon protection for NHBC GREEN, AMBER 1, AMBER 2, and RED site.

Corden EPS Evolution Bond is a pre-applied waterproofing membrane comprised of Corden EPS Evolution VOC and a specialist bonded geotextile to provide a bonding layer for poured concrete specifically for waterproofing applications (TYPE A BARRIER).

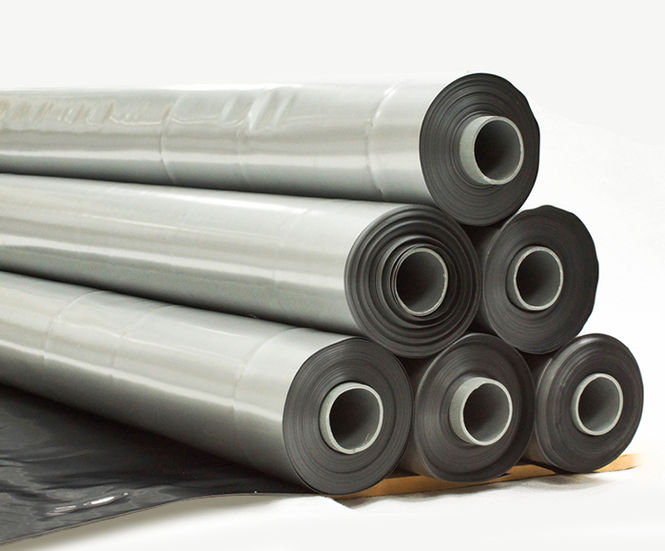

The product is available in roll format, 1.0m x 20m and as detailing strip at 0.3m x 20m (other dimensions available on request) in Black and white colour.

Corden EPS Evolution Bond Hydrocarbon Barrier offers a safe solution for the protection of buildings and occupiers against all levels of hydrocarbons, methane, carbon dioxide and radon ingress. Typically, these are sites previously used as petrol stations, coalfields landfill sites, contaminated industrial sites, Fracking sites, and heavily contaminated sites.

The membrane also acts as a dampproof membrane. Corden EPS Evolution Bond is designed to withstand the most aggressive environments. Testing has been completed in accordance with BS8485:2015 and C748 to determine the permeation rates for Methane, Carbon Dioxide, and a range of VOC’s.

Immersion testing has also been completed to for Chemical Resistance to EN 14414 and EN 14415.

Handling

Roll weights can be in excess of 20kg and hence appropriate care and equipment is required for unloading and handling. This product is non-toxic nor flammable.

Storage

Rolls of Corden EPS Evolution Bond should be stored horizontally, and pallets should not be stacked on top of one another.

Corden EPS Evolution Bond should be stored in a cool, dry place, and be protected from exposure to rain, sun, heat and cold temperatures prior to installation.

Installation

Corden EPS Evolution Bond should be installed in accordance with the product installation guidelines, and in accordance with BS 8485:2015.

Additional Information

For additional information or assistance, please contact JUTA UK directly.

Accessory Products

A wide range of accessories are available for use with the Corden EPS Evolution Bond.
