Reflectatherm Plus air and vapour control layer for internal use
Reflectatherm Plus is a reflective, high-resistance air and vapour control layer for internal walls, ceilings and floors. It is specifically designed to enhance the thermal performance when placed on the warm side of the insulation. The membrane should be installed with the foil side facing the cavity. In ceilings the product is placed between the
Click for full image

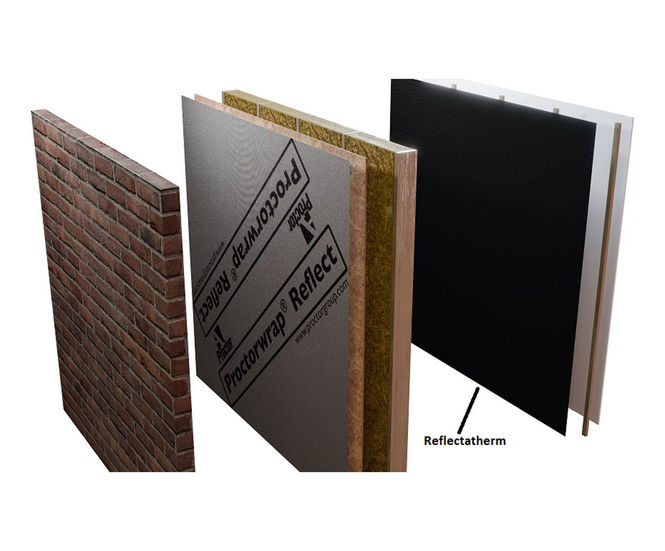

Reflectatherm Plus reflective, high-resistance air and vapour control layer for internal walls, ceilings and floors
Reflectatherm Plus is a reflective, high-resistance air and vapour control layer for internal walls, ceilings and floors. It is specifically designed to enhance the thermal performance when placed on the warm side of the insulation.
The membrane should be installed with the foil side facing the cavity. In ceilings the product is placed between the underside of the rafters and the ceiling lining. Adjacent sheets should be lapped by at least 150mm and sealed with a suitable tape. Minimise penetrations caused by services and seal all joints.
Features
High vapour resistance
Improved airtightness
Creates service void
Help meets the requirements of the Part L in England and Wales, Section 6 in Scotland, and Technical Guidance Document L in Ireland
R value of 0.665m2 K/W when used with a minimum 19mm service cavity
