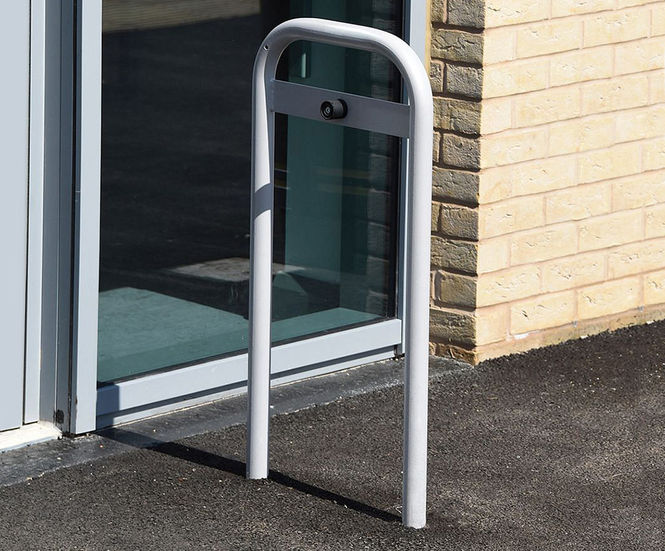

Broxap BX14/DB is a steel barrier designed to protect doors in high-traffic areas from accidental impact and damage. Suitable for commercial and residential use, includes root fixed or base plated options, full or open infill, and a choice of finishes including galvanised, powder coated or stainless steel.

  • Mild steel barrier for door protection

  • Supplied with two flat plate crossbars and rubber buffer as standard

  • Root fixed or surface mounted

  • Galvanised, powder coated or stainless steel finishes

  • Range of RAL and BS standard colours

Applications

  • Commercial entrances

  • Residential buildings

  • Schools and educational facilities

  • Public buildings

  • Healthcare settings

  • High-traffic corridors

Dimensions

  • Above ground height: 1020mm

  • Root depth: 300mm

  • Width: 450mm

  • Tube diameter: 42mm

Materials

Made from mild steel or stainless steel (Grade 304 or 316)

Colours

  • Cobalt Blue (RAL 5013)

  • Duchess Blue (BS 4800 20-C-40)

  • Goose Grey (BS 4800 00-A-05)

  • Green (RAL 6005)

  • Holly Green (BS 4800 14-C-39)

  • Jet Black (RAL 9005)

  • Sky Blue (RAL 5015)

  • Traffic Red (RAL 3020)

  • Traffic White (RAL 9016)

  • Traffic Yellow (RAL 1023)

  • White Aluminium (RAL 9006)

  • Anthracite Grey (RAL 7016)

  • Nimbus Grey (10 A 07)

Finish

  • Hot dip galvanised to BS EN ISO 1461

  • Polyester powder coated

  • Stainless steel 240 grit matt satin polished

Options and variations

  • Root fixed or base plated

  • Full infill panel or open

  • Lid catch and rubber buffer

  • Grade 304 or 316 stainless steel
