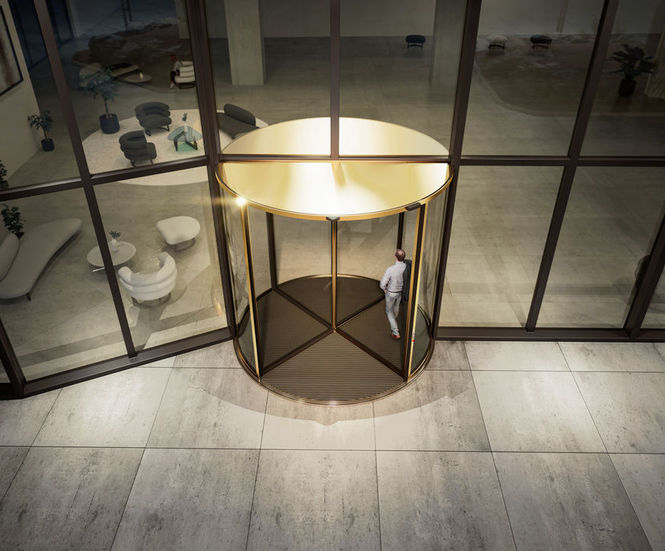

The Revo.PRIME automatic revolving door system from GEZE has a low canopy height and narrow profile for three- or four-leaf doors.

Features

  • Very quiet running, low-wear drive solution with a canopy height of only 75mm

  • Precise closing of the door leaves with the side walls

  • Effective insulation effect against draughts, weather and noise

  • Adjustable automatic speed setting, in line with the number of people passing through

  • Manual operation of the door possible, eg to carry out cleaning work

  • Can be networked, and integrated into the building automation via open standard (BACnet)

  • Independent error recognition and recording

  • Freely configurable inputs and outputs for different functions

  • Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure

Applications

  • Interior and exterior doors with high access frequency.

  • Representative building entrances with large incidence of light.

  • Façades with slim post-rail constructions.

  • Glass façades with the highest design standards.

  • Inner diameter from 1800 to 3800mm.

  • Suitable profile systems are fine-framed profile systems with ISO and mono glass.

Technical data

  • Manual operation: yes

  • Optional speed limiter: yes

  • Optional positioning device: yes

  • Fully automatic operation: yes

  • Servo function: no

  • Inner diameter (min / max): 1800 / 3800mm

  • Clear passage height: 3500mm

  • Canopy height (min): 75mm

  • Side elements version: 10mm LSG, 22mm panel lining, 34mm smooth-surface panel, special glass on request

  • Version of roof structure: optical sheet metal covering, waterproof roof with waterspout

  • Illumination: with roof variant

  • Floor covering: entrance mat according to client requirements

  • Hot-air curtain system: electric / hot water air curtain, depending on ceiling construction

  • Night-time closer layout: inside / outside

  • Night-time closer type: manual / automatic

  • Night-time closer design: 10mm LSG, 22mm ISO glass, 22mm panel lining, special glass on request

  • Lock: manual, rod, electromechanical

  • Door handles horizontal or vertical: yes

  • Floor ring: yes

  • Underfloor operator: no

  • Disabled person's button: yes

  • Standard conformity: EN 16005
